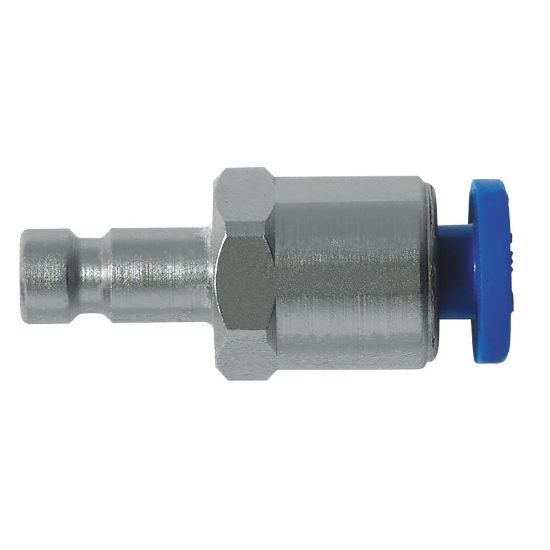

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SFRP04MPN

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SFRP04MPN
SKU: 20SFRP04MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SFRP04MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Seal Material	NBR	Shape	Straight
Minimum Operating Temperature	-4 °F	Valve Included	No
Maximum Operating Temperature	212 °F	For Fluid Type	Water
Technology	Pneumatics	Application	Medical
Length	35 mm	Region of Origin	Germany
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Industry	Electronics	Product Series	Series 20
Diameter	2.7 mm (nominal)	Hex Size	10 mm (external)
Connection Size	4 mm	Connection Type	Push-In
Function	Straight-Through	Flow Rate	1.5 L/min (water)
Valve Type	Without Valve	Coupling Half	Plug
Compatible Fitting	Series 20 Coupler	Weight	0.0055 kg
Type	Plug	Connection Thread Size	n/a
Materials of Construction	Brass, Nickel-plated	Version	Single Shut-Off
Hose I.D.	4 mm	Connection Size	4 mm
Connection Type	Push-In	External Hex (mm)	10
Coupling Half	Plug
