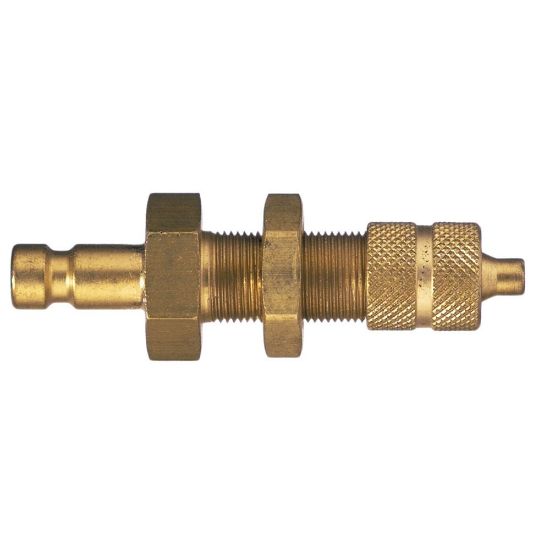

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SFKS06RXX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SFKS06RXX
SKU: 20SFKS06RXX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SFKS06RXX

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.013 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	1	Division	Low Pressure Connectors Europe Division
Specifications Met	RoHS	Brand	Parker
Shape	Straight	Seal Material	Without seal
Maximum Operating Temperature	up to 240 °C	Minimum Operating Temperature	down to -40 °C
Valve Included	No	Technology	Fluid & Gas Handling
Industry	Healthcare & Life Sciences	Application	Electronics
Length	38 mm	Body Material	Stainless Steel 303
Region of Origin	Germany	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Product Series	Series 20	Connection Type	Tube Panel monted, without spring guard
Diameter	2.7 mm (nominal)	Flow Rate	165 L/min (air)
Plating Type	Without Surface Treatment	Connection Size	4x6 mm
Hex Size	12 mm (external)	For Fluid Type	Inert Gas
Function	Straight-Through	Valve Type	Without Valve
Coupling Half	Plug	Compatible Fitting	Series 20 Coupler
Type	Plug	Connection Thread Size	n/a
Version	Single Shut-Off	Hose I.D.	4x6 mm
Connection Size	4x6 mm	Connection Type	Panel Mount with Plastic Hose Connection
Materials of Construction	Stainless Steel AISI 303	External Hex (mm)	12
Coupling Half	Plug
