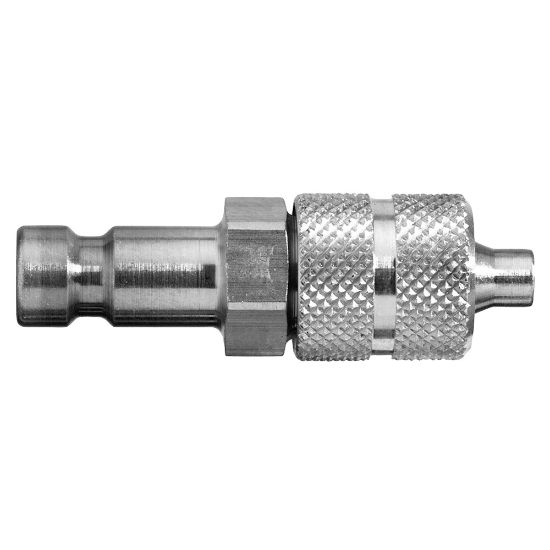

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SFKO06RXX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SFKO06RXX
SKU: 20SFKO06RXX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SFKO06RXX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Specifications Met	RoHS
Brand	Parker	Shape	Straight
Weight	0.005 kg	Seal Material	Without seal
Maximum Operating Temperature	up to 240 °C	Minimum Operating Temperature	down to -40 °C
Valve Included	No	For Fluid Type	Air
Technology	Fluid & Gas Handling	Industry	Healthcare & Life Sciences
Body Material	Stainless Steel 303	Region of Origin	Germany
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Product Series	Series 20
Connection Type	Tube with Hose Nut, without Spring Guard	Length	25 mm
Diameter	2.7 mm (nominal)	Application	Food & Beverages
Plating Type	Without Surface Treatment	Connection Size	4x6 mm
Hex Size	8 mm (external)	Function	Straight-Through
Flow Rate	1.5 L/min (water)	Valve Type	Without Valve
Coupling Half	Plug	Compatible Fitting	Series 20 Coupler
Type	Plug	Connection Thread Size	n/a
Version	Single Shut-Off	Hose I.D.	4x6 mm
Connection Size	4x6 mm	Connection Type	With Plastic Hose Connection
Materials of Construction	Stainless Steel AISI 303	External Hex (mm)	8
Coupling Half	Plug
