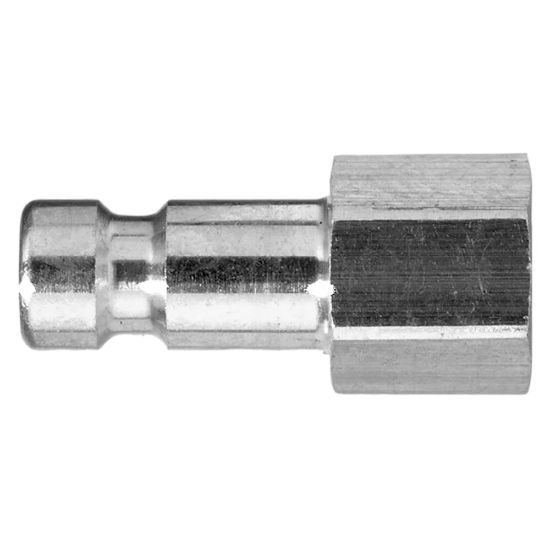

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SFIM05RXX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SFIM05RXX
SKU: 20SFIM05RXX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SFIM05RXX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Shape	Straight
Seal Material	Without seal	Valve Included	No
For Fluid Type	Water	Technology	Pneumatics
Industry	Healthcare & Life Sciences	Body Material	Stainless Steel 303
Region of Origin	Germany	Connection Type	Female
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Product Series	Series 20
Diameter	2.7 mm (nominal)	Flow Rate	165 L/min (air)
Application	Pharma	Plating Type	Without Surface Treatment
Connection Size	M5	Maximum Operating Temperature	up to 464 °F
Function	Straight-Through	Valve Type	Without Valve
Coupling Half	Plug	Compatible Fitting	Series 20 Coupler
Length	17 mm	Weight	0.002 kg
Hex Size	7 mm (external)	Minimum Operating Temperature	down to -40 °F
Type	Plug	Hose I.D.	n/a
Connection Type	Female, Metric	Version	Single Shut-Off
Connection Size	5 mm	Connection Thread Size	5 mm
Materials of Construction	Stainless Steel AISI 303	Coupling Half	Plug
External Hex (mm)	7
