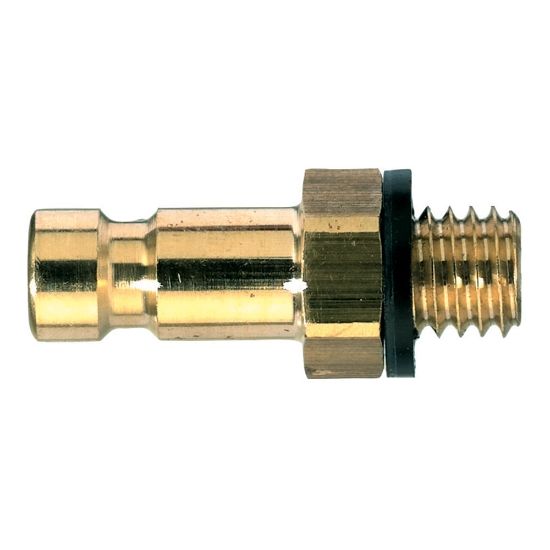

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SFAM05MXX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SFAM05MXX
SKU: 20SFAM05MXX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SFAM05MXX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
For Fluid Type	Compressed Air	Shape	Straight
Seal Material	Without seal	Maximum Operating Temperature	up to 240 °C
Minimum Operating Temperature	down to -40 °C	Valve Included	No
Technology	Fluid & Gas Handling	Application	Medical
Industry	Healthcare & Life Sciences	Region of Origin	Germany
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Operation Type	Sleeve	Interchange Type	European Profile
Product Series	Series 20	Connection Type	Metric DIN 13
Diameter	2.7 mm (nominal)	Flow Rate	165 L/min (air)
Plating Type	Without Surface Treatment	Connection Size	M5
Function	Straight-Through	Valve Type	Without Valve
Product Type	Pneumatics Quick Couplings	Coupling Half	Plug
Compatible Fitting	Series 20 Coupler	Length	18 mm
Weight	0.002 kg	Hex Size	7 mm (external)
Type	Plug	Hose I.D.	n/a
Connection Type	Male, Metric	Materials of Construction	Brass
Version	Single Shut-Off	Connection Size	5 mm
Connection Thread Size	5 mm	Coupling Half	Plug
External Hex (mm)	7
