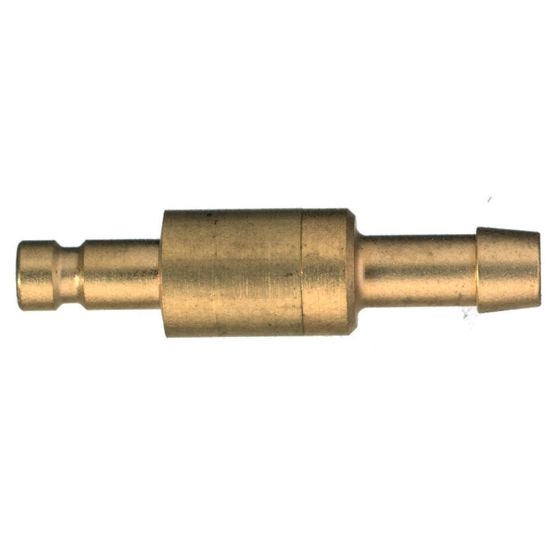

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBTF04MVN

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBTF04MVN
SKU: 20SBTF04MVN
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SBTF04MVN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Application	Industrial Machinery
Body Material	BRASS	Minimum Operating Temperature	-15 °C
Brand	Parker	Shape	Straight
Weight	0.007 kg	Valve Included	Yes
Technology	Fluid & Gas Handling	Seal Material	FKM
Industry	Healthcare & Life Sciences	Length	36 mm
Region of Origin	Germany	Connection Type	Hose Barb
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Function	Double Shut-Off
Product Series	Series 20	Diameter	2.7 mm (nominal)
Valve Type	Standard Valve	Maximum Operating Temperature	392 °F
Hex Size	8 mm (external)	Flow Rate	1.2 L/min (water)
For Fluid Type	Chemical Fluids	Connection Size	4 mm
Coupling Half	Plug	Compatible Fitting	Series 20 Coupler
Type	Plug	Connection Type	Hose Barb
Connection Thread Size	n/a	Materials of Construction	Brass, Nickel-plated
Version	Double Shut-Off	Hose I.D.	4 mm
Connection Size	4 mm	External Hex (mm)	8
Coupling Half	Plug
