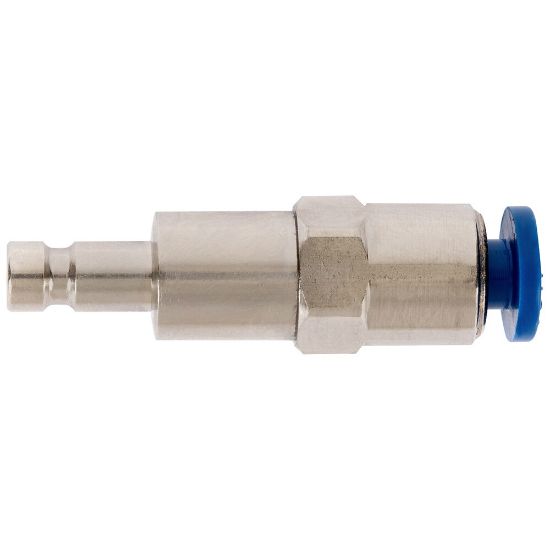

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBRP04MPN

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBRP04MPN
SKU: 20SBRP04MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SBRP04MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Application	Industrial Machinery
Body Material	BRASS	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Shape	Straight	Valve Included	Yes
Technology	Fluid & Gas Handling	Industry	General Industrial
For Fluid Type	Gases	Length	34 mm
Region of Origin	Germany	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Brand	Rectus	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Function	Double Shut-Off
Product Series	Series 20	Diameter	2.7 mm (nominal)
Valve Type	Standard Valve	Connection Size	3x4 mm
Compatible Fitting	Series 20 Plug	Flow Rate	1.2 L/min (water)
Connection Type	Push-In	Version	Double Shut-Off
Weight	0.0064 kg	Coupling Half	Plug
Hex Size	10 mm
Type	Plug	Connection Thread Size	n/a
Materials of Construction	Brass, Nickel-plated	Version	Double Shut-Off
Hose I.D.	3x4 mm	Connection Size	3x4 mm
Connection Type	Push-In	External Hex (mm)	10
Coupling Half	Plug
