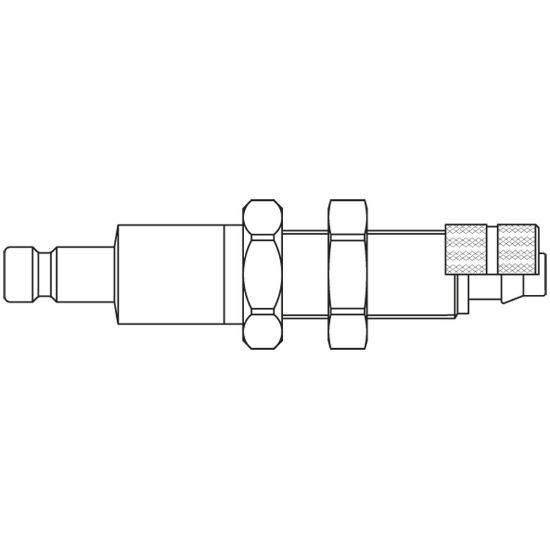

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBKS06EVX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBKS06EVX
SKU: 20SBKS06EVX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SBKS06EVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Shape	Straight
Valve Included	Yes	Technology	Fluid & Gas Handling
Minimum Operating Temperature	5 °F	Body Material	Stainless Steel 316L
Seal Material	FKM	Maximum Operating Temperature	200 °C
Industry	Healthcare & Life Sciences	For Fluid Type	Gases
Region of Origin	Germany	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Brand	Rectus	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Function	Double Shut-Off	Product Series	Series 20
Connection Type	Tube Panel monted, without spring guard	Diameter	2.7 mm (nominal)
Valve Type	Standard Valve	Application	Pharma
Plating Type	Without Surface Treatment	Connection Size	4x6 mm
Hex Size	12 mm (external)	Flow Rate	1.2 L/min (water)
Length	46.5 mm	Weight	0.0154 kg
Coupling Half	Plug	Compatible Fitting	Series 20 Coupler
Type	Plug	Connection Thread Size	n/a
Version	Double Shut-Off	Hose I.D.	4x6 mm
Connection Size	4x6 mm	Connection Type	Panel Mount with Plastic Hose Connection
Materials of Construction	Stainless Steel AISI 316L	External Hex (mm)	12
Coupling Half	Plug
