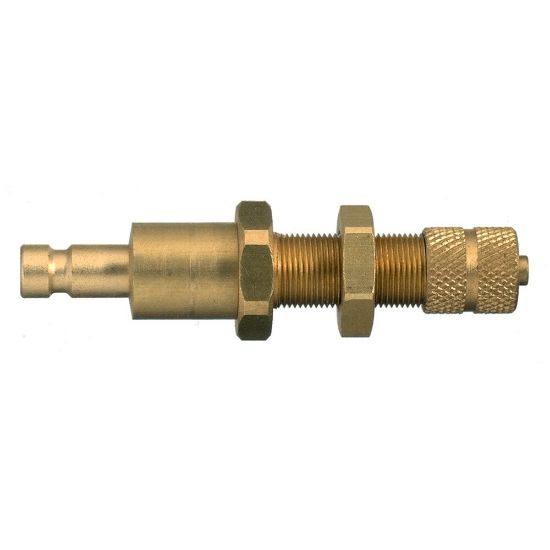

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBKS05MPX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBKS05MPX
SKU: 20SBKS05MPX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SBKS05MPX

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.015 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	5	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Shape	Straight	Valve Included	Yes
Technology	Fluid & Gas Handling	Industry	Healthcare & Life Sciences
For Fluid Type	Gases	Region of Origin	Germany
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Function	Double Shut-Off
Product Series	Series 20	Connection Type	Tube Panel monted, without spring guard
Diameter	2.7 mm (nominal)	Valve Type	Standard Valve
Application	Food & Beverages	Plating Type	Without Surface Treatment
Connection Size	3x5 mm	Hex Size	12 mm (external)
Flow Rate	1.2 L/min (water)	Length	46.5 mm
Coupling Half	Plug	Compatible Fitting	Series 20 Coupler
Type	Plug	Connection Thread Size	n/a
Materials of Construction	Brass	Version	Double Shut-Off
Hose I.D.	3x5 mm	Connection Size	3x5 mm
Connection Type	Panel Mount with Plastic Hose Connection	External Hex (mm)	12
Coupling Half	Plug
