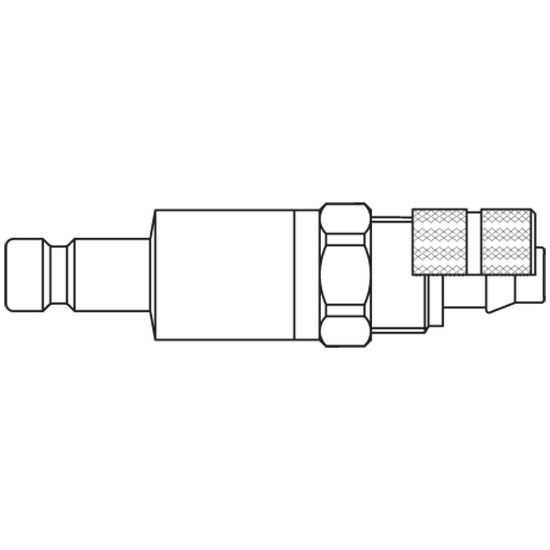

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBKO06REX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBKO06REX
SKU: 20SBKO06REX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SBKO06REX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	302 °F
Minimum Operating Temperature	-40 °F	Shape	Straight
Valve Included	Yes	Technology	Fluid & Gas Handling
Seal Material	EPDM	For Fluid Type	Gases
Body Material	Stainless Steel 303	Region of Origin	Germany
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Brand	Rectus
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Function	Double Shut-Off
Industry	Electronics	Product Series	Series 20
Connection Type	Tube with Hose Nut, without Spring Guard	Diameter	2.7 mm (nominal)
Valve Type	Standard Valve	Application	Pharma
Plating Type	Without Surface Treatment	Connection Size	4x6 mm
Hex Size	9 mm (external)	Flow Rate	1.2 L/min (water)
Length	30.5 mm	Weight	0.0091 kg
Coupling Half	Plug	Compatible Fitting	Series 20 Coupler
Type	Plug	Connection Thread Size	n/a
Version	Double Shut-Off	Hose I.D.	4x6 mm
Connection Size	4x6 mm	Connection Type	With Plastic Hose Connection
Materials of Construction	Stainless Steel AISI 303	External Hex (mm)	9
Coupling Half	Plug
