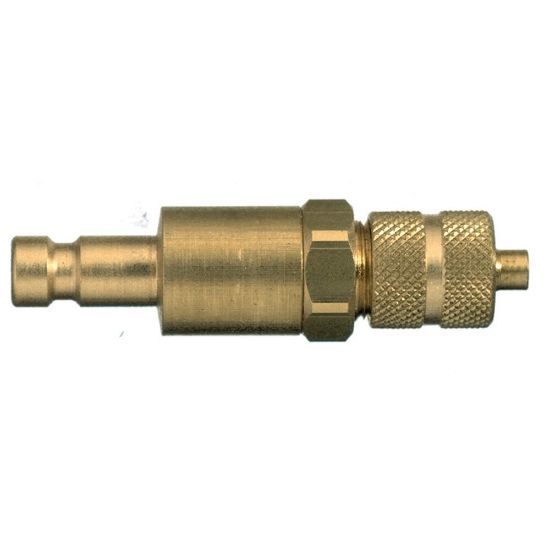

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBKO06MEN

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBKO06MEN
SKU: 20SBKO06MEN
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SBKO06MEN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Minimum Operating Temperature	-40 °C	Maximum Operating Temperature	150 °C
Brand	Parker	Shape	Straight
Valve Included	Yes	Technology	Fluid & Gas Handling
Seal Material	EPDM	Industry	General Industrial
Region of Origin	Germany	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Function	Double Shut-Off	Application	Energy Management
Product Series	Series 20	Connection Type	Tube with Hose Nut, without Spring Guard
Diameter	2.7 mm (nominal)	Valve Type	Standard Valve
Connection Size	4x6 mm	Hex Size	9 mm (external)
Flow Rate	1.2 L/min (water)	For Fluid Type	Inert Gas
Length	30.5 mm	Weight	0.0102 kg
Coupling Half	Plug	Compatible Fitting	Series 20 Coupler
Type	Plug	Connection Thread Size	n/a
Materials of Construction	Brass, Nickel-plated	Version	Double Shut-Off
Hose I.D.	4x6 mm	Connection Size	4x6 mm
Connection Type	With Plastic Hose Connection	External Hex (mm)	9
Coupling Half	Plug
