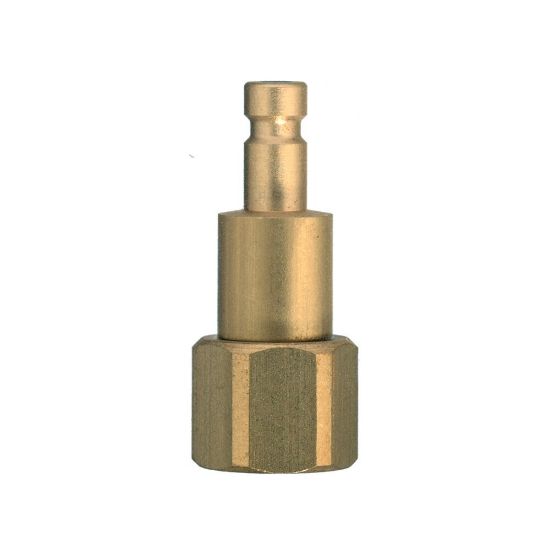

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBIW10MVN

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBIW10MVN
SKU: 20SBIW10MVN
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SBIW10MVN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Application	Industrial Machinery
Body Material	BRASS	Minimum Operating Temperature	-15 °C
Weight	0.01 kg	Brand	Parker
Shape	Straight	Length	30 mm
Valve Included	Yes	Technology	Fluid & Gas Handling
Seal Material	FKM	Maximum Operating Temperature	200 °C
Industry	Healthcare & Life Sciences	Hex Size	12 mm
Region of Origin	Germany	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Function	Double Shut-Off	Connection Type	BSPP ISO 228 Parallel
Product Series	Series 20	Diameter	2.7 mm (nominal)
Valve Type	Standard Valve	Connection Size	G 1/8
Flow Rate	1.2 L/min (water)	For Fluid Type	Inert Gas
Coupling Half	Plug	Compatible Fitting	Series 20 Coupler
Type	Plug	Hose I.D.	n/a
Materials of Construction	Brass, Nickel-plated	External Hex (mm)	n/a
Connection Thread Size	1/8"	Version	Double Shut-Off
Connection Type	Female, BSPP	Connection Size	1/8"
Coupling Half	Plug
