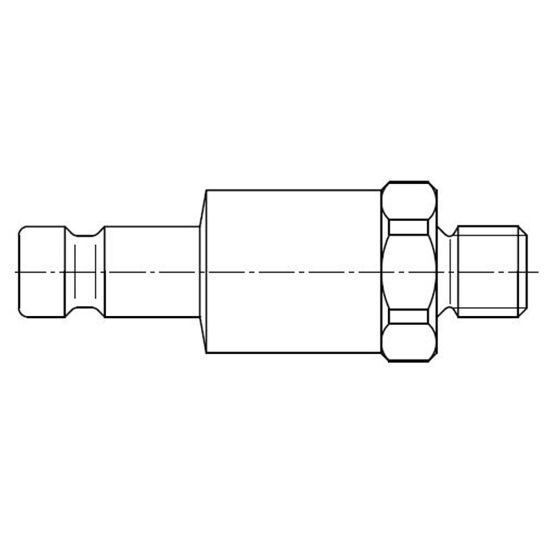

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBAM05MEN

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SBAM05MEN
SKU: 20SBAM05MEN
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SBAM05MEN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Maximum Operating Temperature	302 °F	Minimum Operating Temperature	-40 °F
Specifications Met	RoHS	Shape	Straight
Valve Included	Yes	For Fluid Type	Water
Technology	Fluid & Gas Handling	Seal Material	EPDM
Industry	General Industrial	Region of Origin	Germany
Connection Type	Male	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Function	Double Shut-Off	Product Series	Series 20
Length	28 mm	Diameter	2.7 mm (nominal)
Valve Type	Standard Valve	Application	Food & Beverages
Connection Size	M5	Hex Size	9 mm (external)
Flow Rate	1.2 L/min (water)	Weight	0.0064 kg
Coupling Half	Plug	Compatible Fitting	Series 20 Coupler
Type	Plug	Hose I.D.	n/a
Connection Type	Male, Metric	Materials of Construction	Brass, Nickel-plated
Version	Double Shut-Off	Connection Size	5 mm
Connection Thread Size	5 mm	External Hex (mm)	9
Coupling Half	Plug
