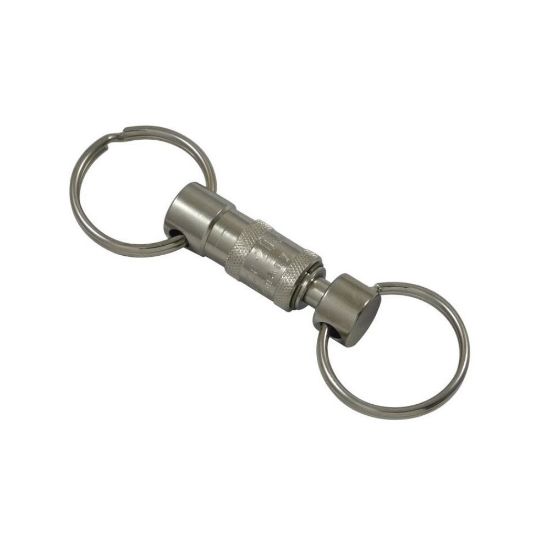

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SASR24MXN

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20SASR24MXN
SKU: 20SASR24MXN
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20SASR24MXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	10
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Seal Material	NBR	Specifications Met	RoHS
Brand	Parker	Shape	Straight
Minimum Operating Temperature	down to -40 °C	Technology	Fluid & Gas Handling
Application	Medical	Industry	General Industrial
For Fluid Type	Gases	Region of Origin	Germany
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Plating Type	Nickel-plated	Operation Type	Sleeve
Interchange Type	European Profile	Product Series	Series 20
Length	17 to 52.5 mm	Diameter	2.7 mm (nominal)
Flow Rate	165 L/min (air)	Valve Type	Standard Valve
Maximum Operating Temperature	up to 464 °F	Connection Type	Safety Locking
Weight	0.0195 kg	Function	Coded System
Product Type	Pneumatics Quick Couplings	Coupling Half	Plug
Connection Size	1/8 inch	Compatible Fitting	Series 20 Coupler
Materials of Construction	Brass, Nickel-plated
