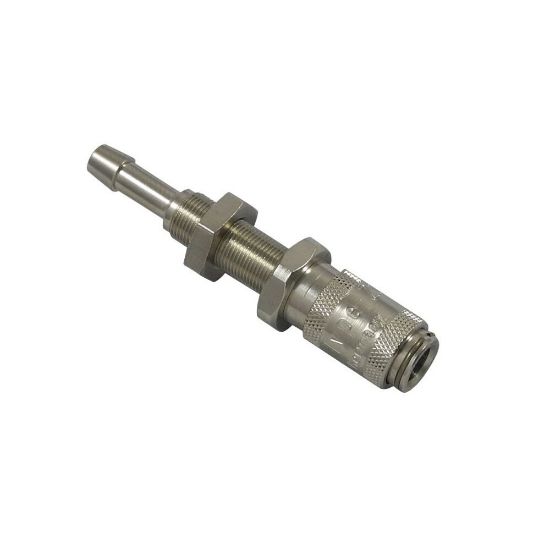

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KFTS04MPN

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KFTS04MPN
SKU: 20KFTS04MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20KFTS04MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Sleeve Material	BRASS	Seal Material	NBR
Specifications Met	RoHS	Shape	Straight
Minimum Operating Temperature	-4 °F	Valve Included	No
Coupling Half	Coupler	Maximum Operating Temperature	212 °F
Technology	Fluid & Gas Handling	Industry	General Industrial
Application	Automotive	Length	51 mm
Region of Origin	Germany	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Product Series	Series 20	Diameter	2.7 mm (nominal)
Compatible Fitting	Series 20 Plug	Hex Size	12 mm (external)
For Fluid Type	Chemical Fluids	Connection Size	4 mm
Connection Type	Hose Barb Panel Mount	Weight	0.0157 kg
Function	Straight-Through	Flow Rate	1.5 L/min (water)
Valve Type	Without Valve
Type	Coupling	Connection Type	Panel Mount with Hose Barb
Connection Thread Size	n/a	Materials of Construction	Brass, Nickel-plated
Coupling Half	Coupler	External Hex (mm)	12
Hose I.D.	4 mm	Connection Size	4 mm
Version	Straight-Through
