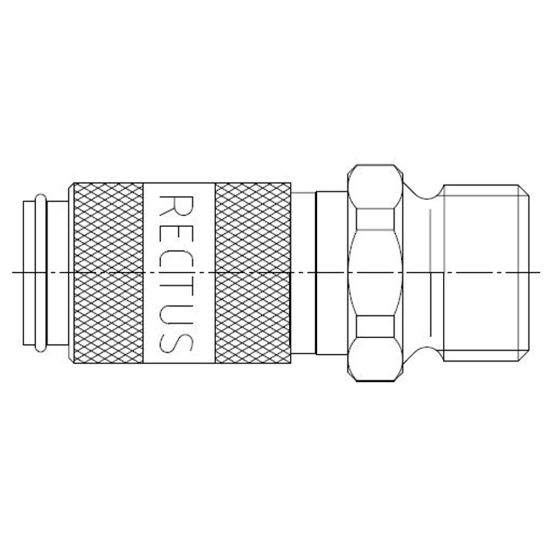

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KFAW10MPN

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KFAW10MPN
SKU: 20KFAW10MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20KFAW10MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Sleeve Material	BRASS	Seal Material	NBR
Specifications Met	RoHS	Brand	Parker
Shape	Straight	Minimum Operating Temperature	-4 °F
Valve Included	No	Coupling Half	Coupler
Maximum Operating Temperature	212 °F	Technology	Fluid & Gas Handling
Industry	Healthcare & Life Sciences	Region of Origin	Germany
Connection Type	Male	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Product Series	Series 20
Length	28 mm	Diameter	2.7 mm (nominal)
Application	Food & Beverages	Connection Size	G 1/8
Compatible Fitting	Series 20 Plug	Hex Size	11 mm (external)
For Fluid Type	Inert Gas	Weight	0.0114 kg
Function	Straight-Through	Flow Rate	1.5 L/min (water)
Valve Type	Without Valve
Type	Coupling	Hose I.D.	n/a
Materials of Construction	Brass, Nickel-plated	Connection Thread Size	1/8"
Coupling Half	Coupler	Connection Type	Male, BSPP
Connection Size	1/8"	External Hex (mm)	11
Version	Straight-Through
