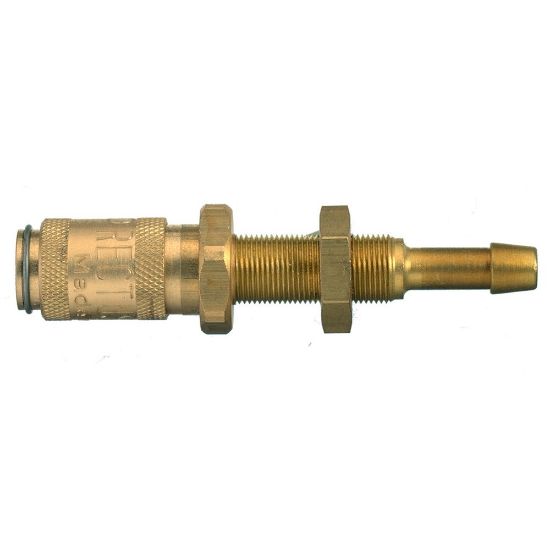

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KBTS04MPN

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KBTS04MPN
SKU: 20KBTS04MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20KBTS04MPN

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.015 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	5	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Sleeve Material	BRASS
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Shape	Straight	Valve Included	Yes
Coupling Half	Coupler	Maximum Operating Temperature	212 °F
Technology	Fluid & Gas Handling	Application	Medical
Industry	Healthcare & Life Sciences	Length	51 mm
Region of Origin	Germany	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Brand	Rectus	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Function	Double Shut-Off
Product Series	Series 20	Diameter	2.7 mm (nominal)
Valve Type	Standard Valve	Compatible Fitting	Series 20 Plug
Hex Size	12 mm (external)	Flow Rate	1.2 L/min (water)
For Fluid Type	Inert Gas	Connection Size	4 mm
Connection Type	Hose Barb Panel Mount
Type	Coupling	Connection Type	Panel Mount with Hose Barb
Connection Thread Size	n/a	Materials of Construction	Brass, Nickel-plated
Version	Double Shut-Off	Coupling Half	Coupler
External Hex (mm)	12	Hose I.D.	4 mm
Connection Size	4 mm
