*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

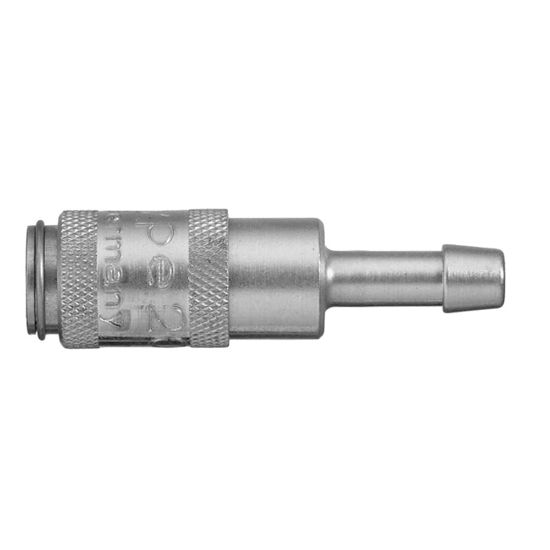

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KBTF04EVX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KBTF04EVX
SKU: 20KBTF04EVX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20KBTF04EVX

Qty:

Products specifications

Attribute name	Attribute value
Brand	Rectus	Shape	Straight
Length	35 mm	Weight	0.009 kg
Diameter	2.7 mm (nominal)	Division	Low Pressure Connectors Europe Division
Function	Double Shut-Off	Industry	Electronics
Flow Rate	1.2 L/min (water)	Technology	Fluid & Gas Handling
Valve Type	Standard Valve	Application	Energy Management
Plating Type	Without Surface Treatment	Product Type	Pneumatic Quick Couplings
Body Material	Stainless Steel 316L	Coupling Half	Coupler
Product Style	Quick-Connect	Seal Material	FKM
For Fluid Type	Glycol	Operation Type	Sleeve
Product Series	Series 20	Valve Included	Yes
Connection Size	4 mm	Connection Type	Hose Barb
Sleeve Material	Stainless Steel	Interchange Type	European Profile
Quantity per Box	1	Region of Origin	Germany
Compatible Fitting	Series 20 Plug	Specifications Met	RoHS
Division	Low Pressure Connectors Europe Division	Maximum Operating Pressure	up to 507 psi
Maximum Operating Temperature	392 °F	Minimum Operating Temperature	-15 °C
Type	Coupling	Version	Double Shut-Off
Hose I.D.	4 mm	Coupling Half	Coupler
Connection Size	4 mm	Connection Type	Hose Barb
External Hex (mm)	n/a	Connection Thread Size	n/a
Materials of Construction	Stainless Steel AISI 316L
