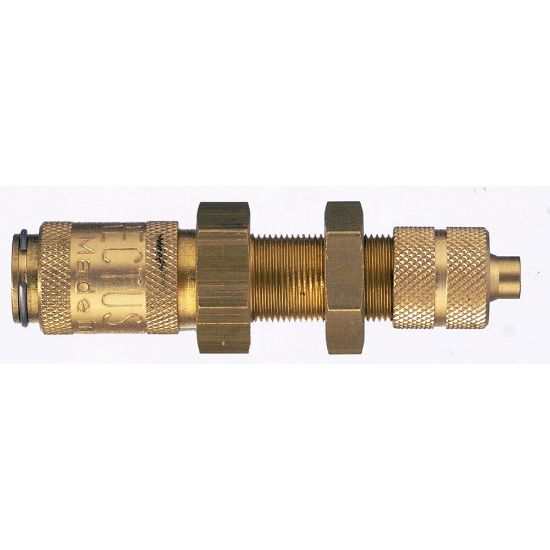

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KBKS05MPN

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KBKS05MPN
SKU: 20KBKS05MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20KBKS05MPN

Qty:

Products specifications

Attribute name	Attribute value
Brand	Parker	Shape	Straight
Length	45 mm	Weight	0.017 kg
Diameter	2.7 mm (nominal)	Division	Low Pressure Connectors Europe Division
Function	Double Shut-Off	Hex Size	12 mm (external)
Industry	General Industrial	Flow Rate	1.2 L/min (water)
Technology	Fluid & Gas Handling	Valve Type	Standard Valve
Application	Food & Beverages	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Body Material	BRASS
Coupling Half	Coupler	Product Style	Quick-Connect
Seal Material	NBR	For Fluid Type	Gases
Operation Type	Sleeve	Product Series	Series 20
Valve Included	Yes	Connection Size	3x5 mm
Connection Type	Tube Panel monted, without spring guard	Sleeve Material	BRASS
Interchange Type	European Profile	Quantity per Box	5
Region of Origin	Germany	Compatible Fitting	Series 20 Plug
Specifications Met	ATEX	Division	Low Pressure Connectors Europe Division
Maximum Operating Pressure	up to 507 psi	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-4 °F
Type	Coupling	Version	Double Shut-Off
Hose I.D.	3x5 mm	Coupling Half	Coupler
Connection Size	3x5 mm	Connection Type	Panel Mount with Plastic Hose Connection
External Hex (mm)	12	Connection Thread Size	n/a
Materials of Construction	Brass, Nickel-plated
