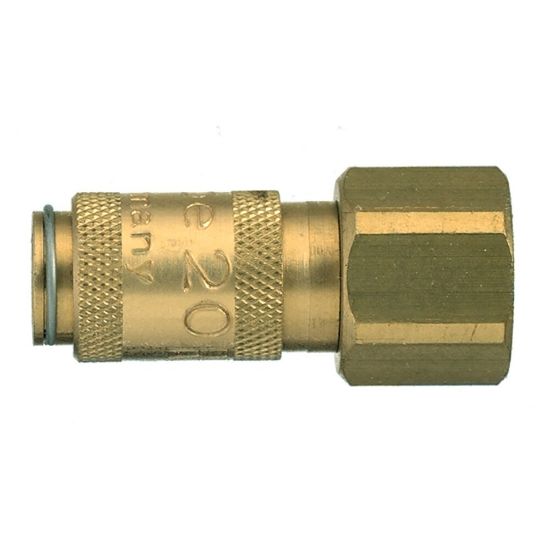

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KBIM05MPN

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KBIM05MPN
SKU: 20KBIM05MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20KBIM05MPN

Qty:

Products specifications

Attribute name	Attribute value
Brand	Rectus	Shape	Straight
Length	26 mm	Weight	0.009 kg
Diameter	2.7 mm (nominal)	Division	Low Pressure Connectors Europe Division
Function	Double Shut-Off	Hex Size	9 mm (external)
Industry	Healthcare & Life Sciences	Flow Rate	1.2 L/min (water)
Technology	Fluid & Gas Handling	Valve Type	Standard Valve
Application	Food & Beverages	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Body Material	BRASS
Coupling Half	Coupler	Product Style	Quick-Connect
Seal Material	NBR	For Fluid Type	Chemical Fluids
Operation Type	Sleeve	Product Series	Series 20
Valve Included	Yes	Connection Size	M5
Connection Type	Female	Sleeve Material	BRASS
Interchange Type	European Profile	Quantity per Box	5
Region of Origin	Germany	Compatible Fitting	Series 20 Plug
Specifications Met	ATEX	Division	Low Pressure Connectors Europe Division
Maximum Operating Pressure	up to 35 bar	Maximum Operating Temperature	212 °F
Minimum Operating Temperature	-4 °F
Type	Coupling	Version	Double Shut-Off
Hose I.D.	n/a	Coupling Half	Coupler
Connection Size	5 mm	Connection Type	Female, Metric
External Hex (mm)	9	Connection Thread Size	5 mm
Materials of Construction	Brass, Nickel-plated
