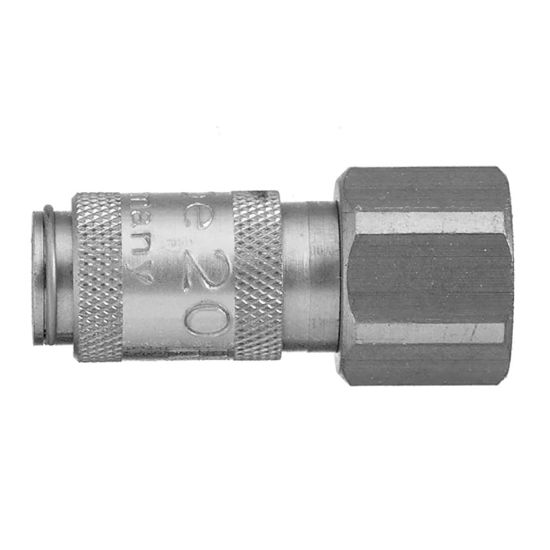

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KBIM05EVX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KBIM05EVX
SKU: 20KBIM05EVX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20KBIM05EVX

Qty:

Products specifications

Attribute name	Attribute value
Brand	Rectus	Shape	Straight
Length	25 mm	Weight	0.009 kg
Diameter	2.7 mm (nominal)	Division	Low Pressure Connectors Europe Division
Function	Double Shut-Off	Hex Size	9 mm (external)
Industry	Electronics	Flow Rate	1.2 L/min (water)
Technology	Fluid & Gas Handling	Valve Type	Standard Valve
Application	Energy Management	Plating Type	Without Surface Treatment
Product Type	Pneumatic Quick Couplings	Body Material	Stainless Steel 316L
Coupling Half	Coupler	Product Style	Quick-Connect
Seal Material	FKM	For Fluid Type	Water
Operation Type	Sleeve	Product Series	Series 20
Valve Included	Yes	Connection Size	M5
Connection Type	Female	Sleeve Material	Stainless Steel
Interchange Type	European Profile	Quantity per Box	1
Region of Origin	Germany	Compatible Fitting	Series 20 Plug
Specifications Met	RoHS	Division	Low Pressure Connectors Europe Division
Maximum Operating Pressure	up to 507 psi	Maximum Operating Temperature	200 °C
Minimum Operating Temperature	5 °F
Type	Coupling	Version	Double Shut-Off
Hose I.D.	n/a	Coupling Half	Coupler
Connection Size	5 mm	Connection Type	Female, Metric
External Hex (mm)	9	Connection Thread Size	5 mm
Materials of Construction	Stainless Steel AISI 316L
