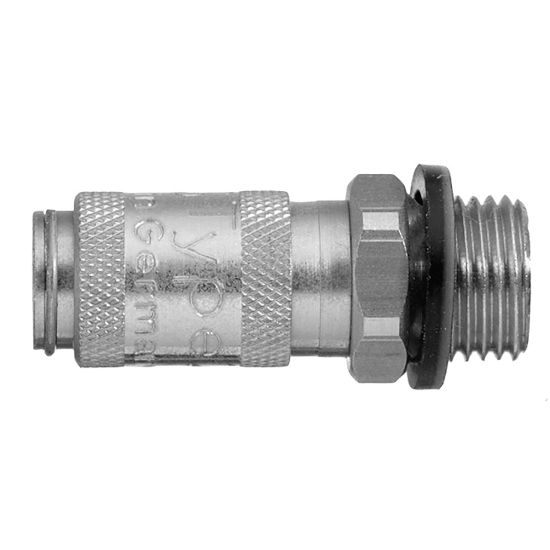

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KBAM05RVX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KBAM05RVX
SKU: 20KBAM05RVX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20KBAM05RVX

Qty:

Products specifications

Attribute name	Attribute value
Brand	Parker	Shape	Straight
Length	26 mm	Weight	0.008 kg
Diameter	2.7 mm (nominal)	Division	Low Pressure Connectors Europe Division
Function	Double Shut-Off	Hex Size	9 mm (external)
Industry	Electronics	Flow Rate	1.2 L/min (water)
Technology	Fluid & Gas Handling	Valve Type	Standard Valve
Application	Medical	Plating Type	Without Surface Treatment
Product Type	Pneumatic Quick Couplings	Body Material	Stainless Steel 303
Coupling Half	Coupler	Product Style	Quick-Connect
Seal Material	FKM	For Fluid Type	Inert Gas
Operation Type	Sleeve	Product Series	Series 20
Valve Included	Yes	Connection Size	M5
Connection Type	Metric DIN 13	Sleeve Material	Stainless Steel
Interchange Type	European Profile	Quantity per Box	1
Region of Origin	Germany	Compatible Fitting	Series 20 Plug
Specifications Met	RoHS	Division	Low Pressure Connectors Europe Division
Maximum Operating Pressure	up to 35 bar	Maximum Operating Temperature	392 °F
Minimum Operating Temperature	-15 °C
Type	Coupling	Version	Double Shut-Off
Hose I.D.	n/a	Coupling Half	Coupler
Connection Size	5 mm	Connection Type	Male, Metric
External Hex (mm)	9	Connection Thread Size	5 mm
Materials of Construction	Stainless Steel AISI 303
