*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

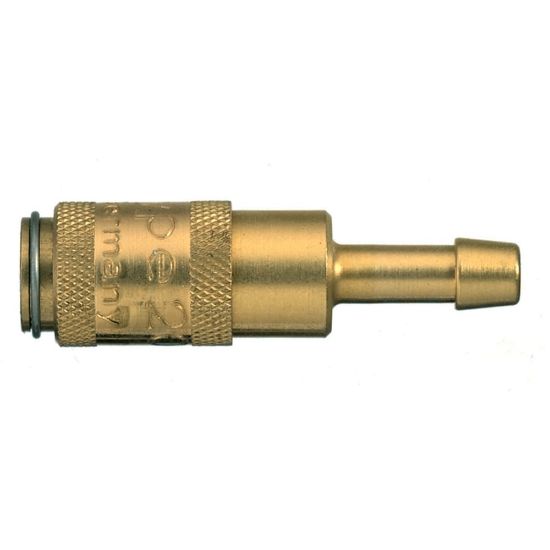

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KATF02MPN

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KATF02MPN
SKU: 20KATF02MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20KATF02MPN

Qty:

Products specifications

Attribute name	Attribute value
Brand	Parker	Shape	Straight
Length	27.5 mm	Weight	0.008 kg
Diameter	2.7 mm (nominal)	Division	Low Pressure Connectors Europe Division
Function	Single Shut-Off	Industry	Transportation
Flow Rate	165 L/min (air)	Technology	Pneumatics
Valve Type	Standard Valve	Application	Textile Machinery
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Body Material	BRASS	Coupling Half	Coupler
Product Style	Quick-Connect	Seal Material	NBR
For Fluid Type	Compressed Air	Operation Type	Sleeve
Product Series	Series 20	Valve Included	Yes
Connection Size	2 mm	Connection Type	Hose Barb
Sleeve Material	BRASS	Interchange Type	European Profile
Quantity per Box	5	Region of Origin	Germany
Compatible Fitting	Series 20 Plug	Specifications Met	RoHS
Division	Low Pressure Connectors Europe Division	Maximum Operating Pressure	up to 35 bar
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °C
Type	Coupling	Version	Single Shut-Off
Hose I.D.	2 mm	Coupling Half	Coupler
Connection Size	2 mm	Connection Type	Hose Barb
External Hex (mm)	n/a	Connection Thread Size	n/a
Materials of Construction	Brass, Nickel-plated
