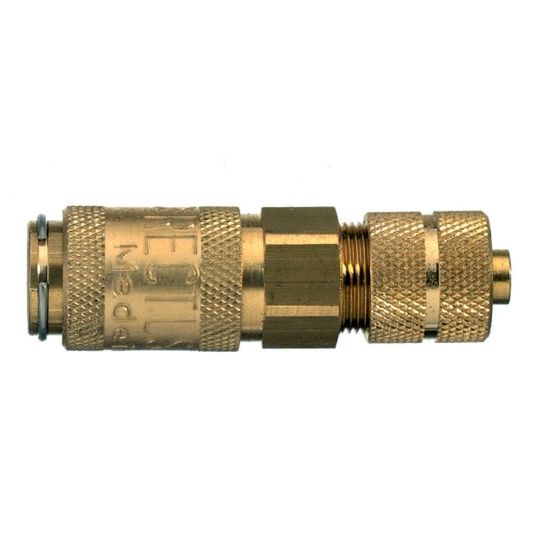

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KAKO04MPN

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KAKO04MPN
SKU: 20KAKO04MPN
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20KAKO04MPN

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.011 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	5	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Sleeve Material	BRASS
Maximum Operating Temperature	100 °C	Seal Material	NBR
Brand	Parker	Shape	Straight
Minimum Operating Temperature	-4 °F	Valve Included	Yes
Coupling Half	Coupler	For Fluid Type	Air
Technology	Pneumatics	Industry	Healthcare & Life Sciences
Length	34 mm	Region of Origin	Germany
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Function	Single Shut-Off
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Application	Energy Management	Product Series	Series 20
Connection Type	Tube with Hose Nut, without Spring Guard	Diameter	2.7 mm (nominal)
Flow Rate	165 L/min (air)	Valve Type	Standard Valve
Connection Size	3x4 mm	Compatible Fitting	Series 20 Plug
Hex Size	9 mm (external)
Type	Coupling	Connection Thread Size	n/a
Materials of Construction	Brass, Nickel-plated	Version	Single Shut-Off
Coupling Half	Coupler	Hose I.D.	3x4 mm
Connection Size	3x4 mm	Connection Type	With Plastic Hose Connection
External Hex (mm)	9
