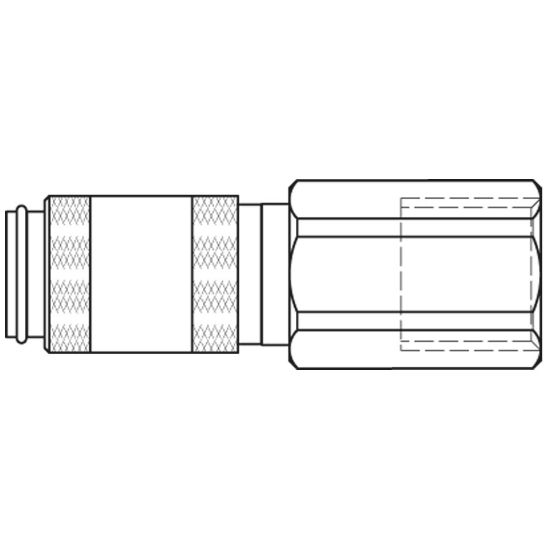

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KAIW10MVX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KAIW10MVX
SKU: 20KAIW10MVX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20KAIW10MVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Sleeve Material	BRASS	Minimum Operating Temperature	-15 °C
For Fluid Type	Compressed Air	Shape	Straight
Valve Included	Yes	Coupling Half	Coupler
Technology	Pneumatics	Seal Material	FKM
Maximum Operating Temperature	200 °C	Industry	Healthcare & Life Sciences
Region of Origin	Germany	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Brand	Rectus	Function	Single Shut-Off
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Product Series	Series 20
Connection Type	Female ISO 228 Parallel	Length	28 mm
Weight	0.0139 kg	Diameter	2.7 mm (nominal)
Flow Rate	165 L/min (air)	Valve Type	Standard Valve
Application	Textile Machinery	Plating Type	Without Surface Treatment
Connection Size	G 1/8	Compatible Fitting	Series 20 Plug
Hex Size	12 mm (external)
Type	Coupling	Hose I.D.	n/a
Materials of Construction	Brass	Connection Thread Size	1/8"
Version	Single Shut-Off	Coupling Half	Coupler
Connection Type	Female, BSPP	Connection Size	1/8"
External Hex (mm)	12
