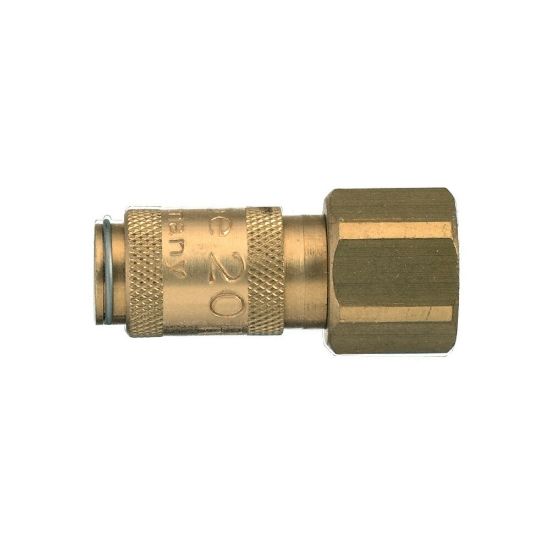

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KAIM05MEN

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KAIM05MEN
SKU: 20KAIM05MEN
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20KAIM05MEN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Application	Industrial Machinery
Body Material	BRASS	Sleeve Material	BRASS
Minimum Operating Temperature	-40 °C	Maximum Operating Temperature	150 °C
Specifications Met	RoHS	Shape	Straight
Industry	Transportation	Valve Included	Yes
Coupling Half	Coupler	For Fluid Type	Air
Technology	Pneumatics	Seal Material	EPDM
Region of Origin	Germany	Connection Type	Female
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Brand	Rectus	Function	Single Shut-Off
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Length	26 mm	Product Series	Series 20
Weight	0.0095 kg	Diameter	2.7 mm (nominal)
Flow Rate	165 L/min (air)	Valve Type	Standard Valve
Connection Size	M5	Compatible Fitting	Series 20 Plug
Hex Size	9 mm (external)
Type	Coupling	Hose I.D.	n/a
Connection Type	Female, Metric	Materials of Construction	Brass, Nickel-plated
Version	Single Shut-Off	Coupling Half	Coupler
Connection Size	5 mm	Connection Thread Size	5 mm
External Hex (mm)	9
