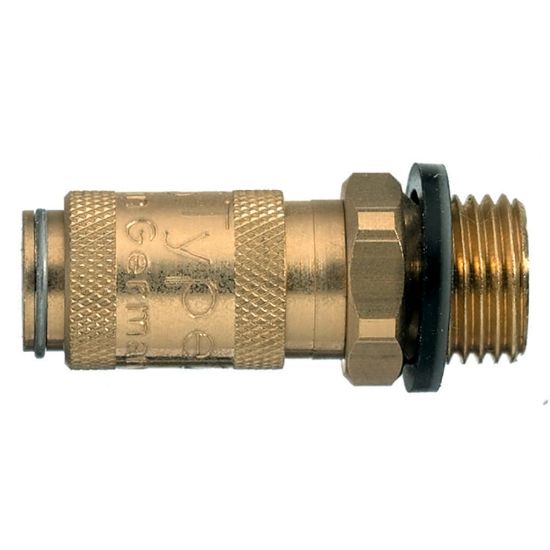

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KAAW10MPX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KAAW10MPX
SKU: 20KAAW10MPX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20KAAW10MPX

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.011 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	5	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Sleeve Material	BRASS
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-20 °C
Seal Material	NBR	For Fluid Type	Compressed Air
Shape	Straight	Valve Included	Yes
Coupling Half	Coupler	Technology	Pneumatics
Application	Medical	Industry	General Industrial
Region of Origin	Germany	Connection Type	Male
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Function	Single Shut-Off	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Product Series	Series 20	Length	28 mm
Diameter	2.7 mm (nominal)	Flow Rate	165 L/min (air)
Valve Type	Standard Valve	Plating Type	Without Surface Treatment
Connection Size	G 1/8	Compatible Fitting	Series 20 Plug
Hex Size	11 mm (external)
Type	Coupling	Hose I.D.	n/a
Materials of Construction	Brass	Connection Thread Size	1/8"
Version	Single Shut-Off	Coupling Half	Coupler
Connection Type	Male, BSPP	Connection Size	1/8"
External Hex (mm)	11
