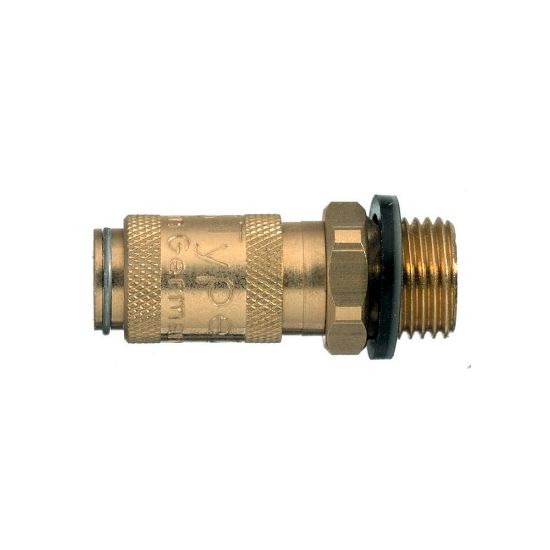

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KAAM05MEN

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KAAM05MEN
SKU: 20KAAM05MEN
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20KAAM05MEN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Sleeve Material	BRASS	Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	302 °F	Specifications Met	RoHS
For Fluid Type	Compressed Air	Shape	Straight
Valve Included	Yes	Coupling Half	Coupler
Technology	Pneumatics	Seal Material	EPDM
Industry	Healthcare & Life Sciences	Region of Origin	Germany
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Brand	Rectus	Function	Single Shut-Off
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Length	26 mm	Product Series	Series 20
Connection Type	Metric DIN 13	Weight	0.0083 kg
Diameter	2.7 mm (nominal)	Flow Rate	165 L/min (air)
Valve Type	Standard Valve	Application	Food & Beverages
Connection Size	M5	Compatible Fitting	Series 20 Plug
Hex Size	9 mm (external)
Type	Coupling	Hose I.D.	n/a
Connection Type	Male, Metric	Materials of Construction	Brass, Nickel-plated
Version	Single Shut-Off	Coupling Half	Coupler
Connection Size	5 mm	Connection Thread Size	5 mm
External Hex (mm)	9
