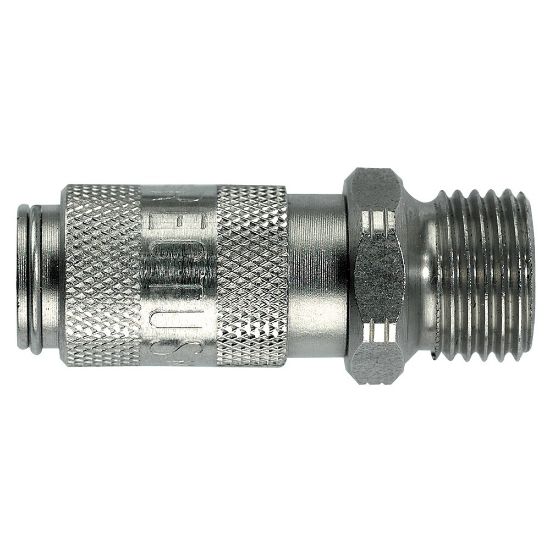

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KAAM05EVX

Name: Quick Coupling, European Profile, ND 2.7 (Series 20) - 20KAAM05EVX
SKU: 20KAAM05EVX
Availability: OutOfStock

Quick coupling system with nominal diameter 2.7 for pneumatic, liquids and gas applications up to 35 bar. Available in nickel-plated brass or stainless steel.

Availability:

Backordered

SKU: 20KAAM05EVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-15 °C
Weight	0.01 kg	For Fluid Type	Compressed Air
Shape	Straight	Industry	Transportation
Valve Included	Yes	Coupling Half	Coupler
Technology	Pneumatics	Body Material	Stainless Steel 316L
Seal Material	FKM	Maximum Operating Temperature	200 °C
Region of Origin	Germany	Connection Type	Male
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Brand	Rectus
Function	Single Shut-Off	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Length	26 mm	Product Series	Series 20
Diameter	2.7 mm (nominal)	Flow Rate	165 L/min (air)
Valve Type	Standard Valve	Application	Food & Beverages
Plating Type	Without Surface Treatment	Connection Size	M5
Sleeve Material	Stainless Steel	Compatible Fitting	Series 20 Plug
Hex Size	9 mm (external)
Type	Coupling	Hose I.D.	n/a
Connection Type	Male, Metric	Version	Single Shut-Off
Coupling Half	Coupler	Connection Size	5 mm
Connection Thread Size	5 mm	Materials of Construction	Stainless Steel AISI 316L
External Hex (mm)	9
