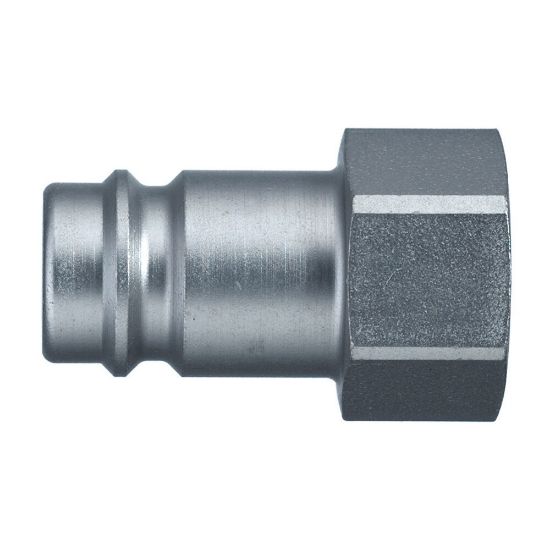

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27SFIW21EXX

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27SFIW21EXX
SKU: 27SFIW21EXX
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 27SFIW21EXX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-40 °C
Weight	0.042 kg	Brand	Parker
Shape	Straight	Seal Material	Without seal
Valve Included	No	Technology	Pneumatics
Body Material	Stainless Steel 316L	Industry	General Industrial
For Fluid Type	Steam	Length	37 mm
Hex Size	24 mm	Region of Origin	Germany
Connection Type	Female	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Connection Size	G 1/2	Interchange Type	European Profile
Diameter	10 mm (nominal)	Application	Textile Machinery
Plating Type	Without Surface Treatment	Maximum Operating Temperature	up to 464 °F
Function	Straight-Through	Valve Type	Without Valve
Coupling Half	Plug	Flow Rate	2400 L/min (air)
Product Series	Series 27	Compatible Fitting	Series 27 Coupler
Version	Single Shut-Off	Connection Size	1/2"
Connection Type	Female, BSPP	Materials of Construction	Stainless Steel AISI 316L
Coupling Half	Plug
