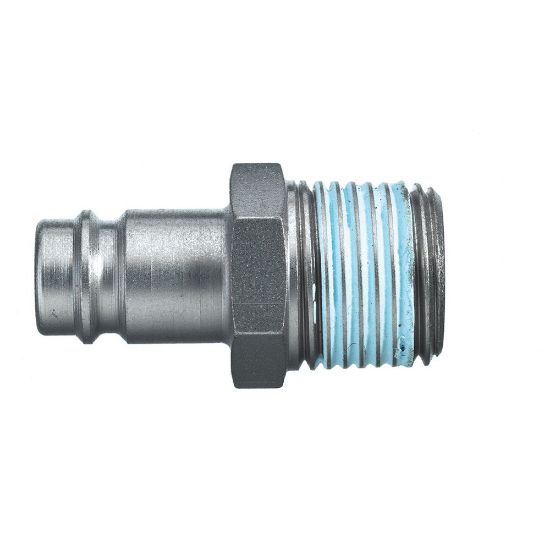

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27SFAK21MXN

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27SFAK21MXN
SKU: 27SFAK21MXN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 27SFAK21MXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Division	Low Pressure Connectors Europe Division
Body Material	BRASS	Quantity per Box	50
Specifications Met	RoHS	Brand	Parker
Shape	Straight	Seal Material	Without seal
Valve Included	No	Technology	Pneumatics
Region of Origin	Germany	Connection Type	Male
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	R 1/2
Interchange Type	European Profile	Length	33 to 76 mm
Diameter	10 mm (nominal)	Industry	Electronics
Application	Food & Beverages	Function	Straight-Through
Valve Type	Without Valve	For Fluid Type	Breathing Air
Coupling Half	Plug	Minimum Operating Temperature	down to -40 °F
Maximum Operating Temperature	240 °C	Hex Size	17 to 32 mm
Flow Rate	2400 L/min (air)	Product Series	Series 27
Weight	0.0593 kg	Compatible Fitting	Series 27 Coupler
Materials of Construction	Brass, Nickel-plated	Connection Size	1/2"
Connection Type	Male, BSPT	Coupling Half	Plug
Version	Straight Through
