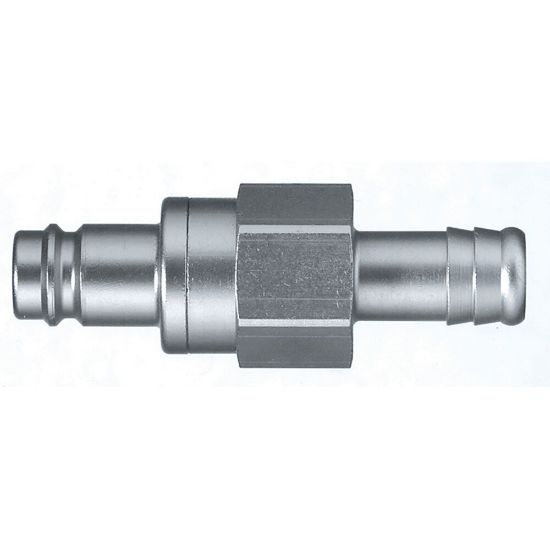

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27SBTF19EVX

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27SBTF19EVX
SKU: 27SBTF19EVX
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 27SBTF19EVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Shape	Straight
Valve Included	Yes	Technology	Fluid & Gas Handling
Minimum Operating Temperature	5 °F	Body Material	Stainless Steel 316L
Seal Material	FKM	Maximum Operating Temperature	200 °C
For Fluid Type	Gases	Hex Size	24 mm
Region of Origin	Germany	Connection Type	Hose Barb
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Brand	Rectus
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Function	Double Shut-Off
Application	Industrial Equipment	Diameter	10 mm (nominal)
Industry	Electronics	Connection Size	19 mm
Plating Type	Without Surface Treatment	Coupling Half	Plug
Valve Type	High Flow Valve	Product Series	Series 27
Flow Rate	14 L/min (water)	Length	74.5 mm
Weight	0.1024 kg
Connection Type	Hose Barb	Version	Double Shut-Off
Connection Size	19 mm	Materials of Construction	Stainless Steel AISI 316L
Coupling Half	Plug
