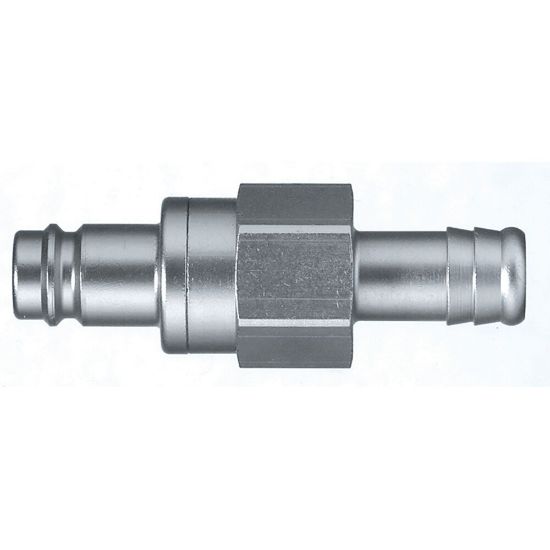

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27SBTF13MEN

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27SBTF13MEN
SKU: 27SBTF13MEN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 27SBTF13MEN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Minimum Operating Temperature	-40 °C	Maximum Operating Temperature	302 °F
Brand	Parker	Shape	Straight
Valve Included	Yes	Technology	Fluid & Gas Handling
Seal Material	EPDM	For Fluid Type	Gases
Application	Electronics	Region of Origin	Germany
Connection Type	Hose Barb	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	13 mm
Interchange Type	European Profile	Function	Double Shut-Off
Length	33 to 76 mm	Diameter	10 mm (nominal)
Industry	Electronics	Coupling Half	Plug
Valve Type	High Flow Valve	Weight	0.1038 kg
Hex Size	17 to 32 mm	Product Series	Series 27
Flow Rate	14 L/min (water)	Compatible Fitting	Series 1727 Coupler
Connection Type	Hose Barb	Materials of Construction	Brass, Nickel-plated
Version	Double Shut-Off	Connection Size	13 mm
Coupling Half	Plug
