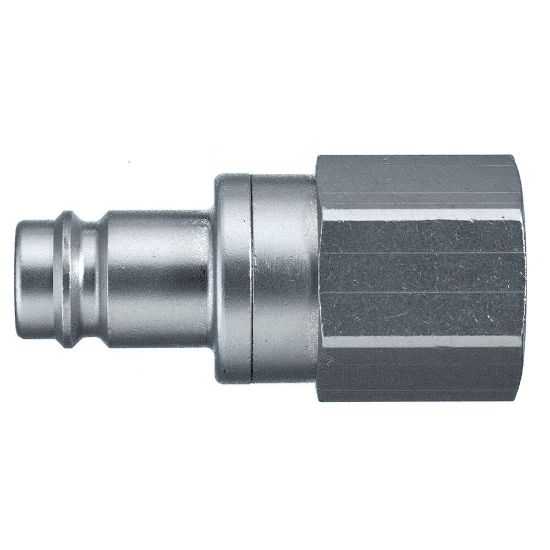

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27SBIW21EVX

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27SBIW21EVX
SKU: 27SBIW21EVX
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 27SBIW21EVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-15 °C
Brand	Parker	Shape	Straight
Industry	Transportation	Valve Included	Yes
For Fluid Type	Water	Technology	Fluid & Gas Handling
Body Material	Stainless Steel 316L	Seal Material	FKM
Maximum Operating Temperature	200 °C	Application	Electronics
Hex Size	24 mm	Region of Origin	Germany
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	G 1/2
Interchange Type	European Profile	Function	Double Shut-Off
Connection Type	BSPP ISO 228 Parallel	Diameter	10 mm (nominal)
Plating Type	Without Surface Treatment	Coupling Half	Plug
Valve Type	High Flow Valve	Length	54.5 mm
Product Series	Series 27	Flow Rate	14 L/min (water)
Weight	0.0841 kg	Compatible Fitting	Series 1727 Coupler
Version	Double Shut-Off	Connection Size	1/2"
Connection Type	Female, BSPP	Materials of Construction	Stainless Steel AISI 316L
Coupling Half	Plug
