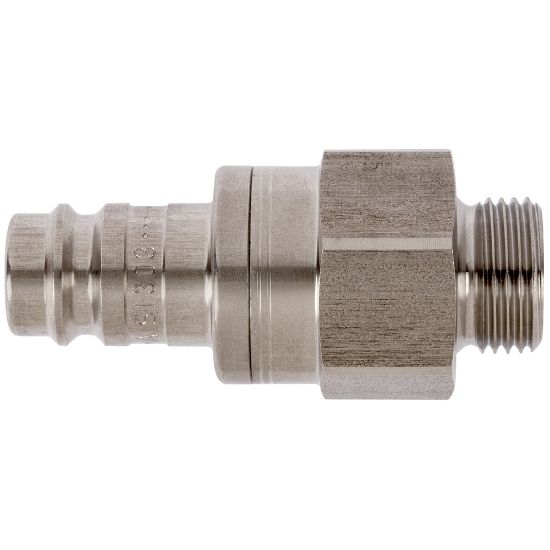

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27SBAW26REX

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27SBAW26REX
SKU: 27SBAW26REX
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 27SBAW26REX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-40 °F
Shape	Straight	Valve Included	Yes
For Fluid Type	Water	Technology	Fluid & Gas Handling
Seal Material	EPDM	Body Material	Stainless Steel 303
Length	58 mm	Hex Size	32 mm
Region of Origin	Germany	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Brand	Rectus	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Function	Double Shut-Off	Application	Energy Management
Diameter	10 mm (nominal)	Industry	Electronics
Connection Size	G 3/4	Plating Type	Without Surface Treatment
Maximum Operating Temperature	up to 464 °F	Coupling Half	Plug
Connection Type	Male ISO 228 Parallel	Valve Type	High Flow Valve
Product Series	Series 27	Flow Rate	14 L/min (water)
Weight	0.0824 kg
Version	Double Shut-Off	Connection Type	Male, BSPP
Connection Size	3/4"	Materials of Construction	Stainless Steel AISI 303
Coupling Half	Plug
