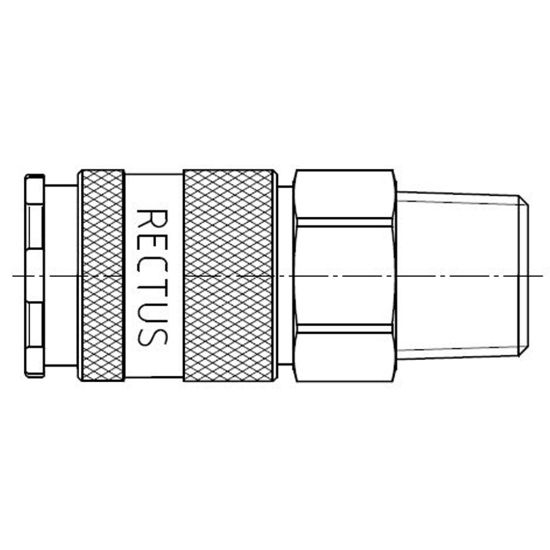

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KFAK26MEN

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KFAK26MEN
SKU: 27KFAK26MEN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 27KFAK26MEN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Sleeve Material	BRASS	Maximum Operating Temperature	302 °F
Minimum Operating Temperature	-40 °F	Specifications Met	RoHS
Shape	Straight	Valve Included	No
Coupling Half	Coupler	For Fluid Type	Water
Technology	Fluid & Gas Handling	Seal Material	EPDM
Industry	General Industrial	Outside Diameter	27 mm
Hex Size	27 mm	Length	65 mm
Region of Origin	Germany	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Brand	Rectus
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Connection Type	BSPT DIN 2999 Tapered	Application	Energy Management
Diameter	10 mm (nominal)	Connection Size	R 3/4
Compatible Fitting	Series 27 Plug	Function	Straight-Through
Valve Type	Without Valve	Product Series	Series 27
Flow Rate	14 L/min (water)	Maximum Flow Rate	14 L/min (liquids and gas)
Weight	0.1394 kg
Materials of Construction	Brass, Nickel-plated	Coupling Half	Coupler
Connection Type	Male, BSPT	Connection Size	3/4"
Version	Straight Through
