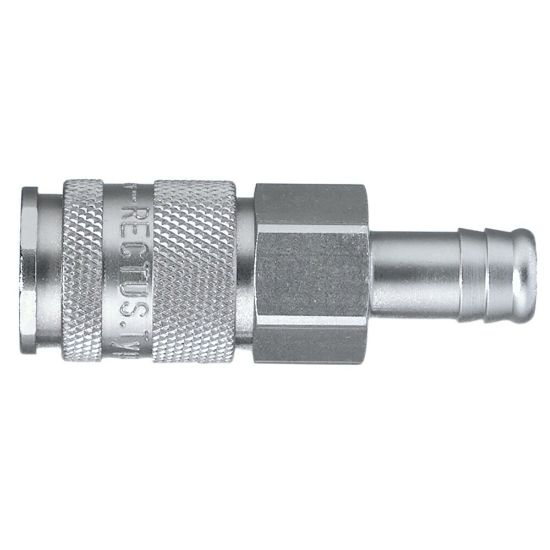

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KBTF13EVX

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KBTF13EVX
SKU: 27KBTF13EVX
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 27KBTF13EVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Sleeve Material	BRASS
Weight	0.1 kg	Minimum Operating Temperature	-15 °C
Specifications Met	RoHS	Shape	Straight
Valve Included	Yes	Coupling Half	Coupler
Technology	Fluid & Gas Handling	Body Material	Stainless Steel 316L
Seal Material	FKM	Maximum Operating Temperature	200 °C
Industry	General Industrial	For Fluid Type	Gases
Outside Diameter	27 mm	Hex Size	24 mm
Region of Origin	Germany	Connection Type	Hose Barb
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Brand	Rectus	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	13 mm
Interchange Type	European Profile	Function	Double Shut-Off
Application	Industrial Equipment	Diameter	10 mm (nominal)
Compatible Fitting	Series 27 Plug	Plating Type	Without Surface Treatment
Valve Type	High Flow Valve	Length	76.5 mm
Product Series	Series 27	Flow Rate	14 L/min (water)
Connection Type	Hose Barb	Version	Double Shut-Off
Coupling Half	Coupler	Connection Size	13 mm
Materials of Construction	Stainless Steel AISI 316L
