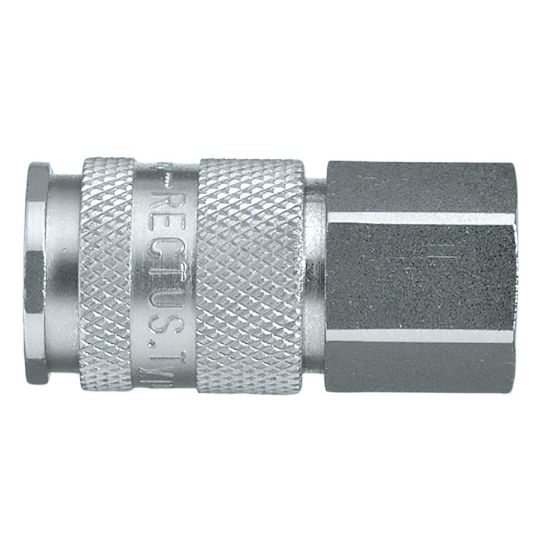

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KBIW26RVX

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KBIW26RVX
SKU: 27KBIW26RVX
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 27KBIW26RVX

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.194 kg	Division	Low Pressure Connectors Europe Division
Quantity per Box	1	Division	Low Pressure Connectors Europe Division
Sleeve Material	BRASS	Minimum Operating Temperature	-15 °C
Specifications Met	RoHS	Shape	Straight
Valve Included	Yes	Coupling Half	Coupler
Technology	Fluid & Gas Handling	Seal Material	FKM
Maximum Operating Temperature	200 °C	Industry	General Industrial
For Fluid Type	Gases	Outside Diameter	27 mm
Body Material	Stainless Steel 303	Hex Size	32 mm
Region of Origin	Germany	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Brand	Rectus
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Function	Double Shut-Off
Connection Type	BSPP ISO 228 Parallel	Application	Industrial Equipment
Diameter	10 mm (nominal)	Connection Size	G 3/4
Compatible Fitting	Series 27 Plug	Plating Type	Without Surface Treatment
Valve Type	High Flow Valve	Length	60.5 mm
Product Series	Series 27	Flow Rate	14 L/min (water)
Version	Double Shut-Off	Coupling Half	Coupler
Connection Type	Female, BSPP	Connection Size	3/4"
Materials of Construction	Stainless Steel AISI 303
