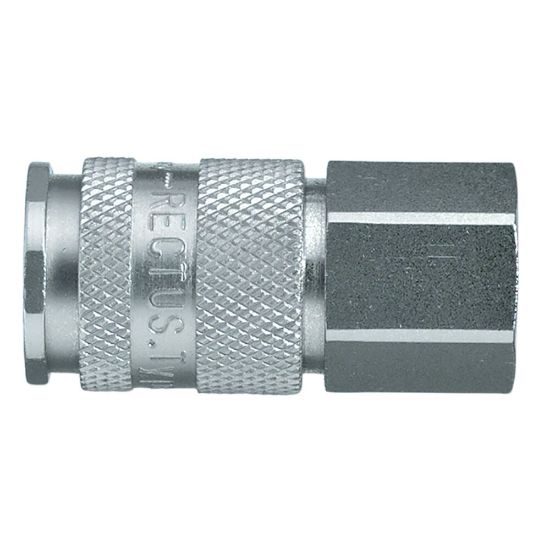

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KBIW21EEX

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KBIW21EEX
SKU: 27KBIW21EEX
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 27KBIW21EEX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Sleeve Material	BRASS
Maximum Operating Temperature	150 °C	Minimum Operating Temperature	-40 °F
Shape	Straight	Valve Included	Yes
Coupling Half	Coupler	Technology	Fluid & Gas Handling
Body Material	Stainless Steel 316L	Seal Material	EPDM
For Fluid Type	Steam	Outside Diameter	27 mm
Application	Electronics	Hex Size	24 mm
Region of Origin	Germany	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Brand	Rectus	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	G 1/2
Interchange Type	European Profile	Function	Double Shut-Off
Connection Type	BSPP ISO 228 Parallel	Diameter	10 mm (nominal)
Industry	Electronics	Compatible Fitting	Series 27 Plug
Plating Type	Without Surface Treatment	Valve Type	High Flow Valve
Length	56.5 mm	Product Series	Series 27
Weight	0.1366 kg	Flow Rate	14 L/min (water)
Version	Double Shut-Off	Coupling Half	Coupler
Connection Size	1/2"	Connection Type	Female, BSPP
Materials of Construction	Stainless Steel AISI 316L
