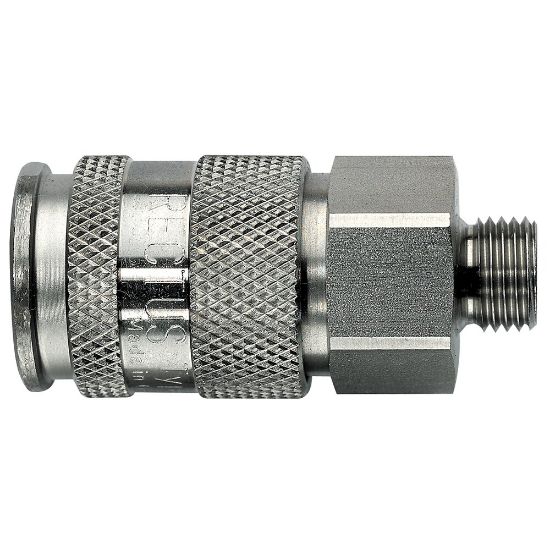

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KBAW17EEX

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KBAW17EEX
SKU: 27KBAW17EEX
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 27KBAW17EEX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Sleeve Material	BRASS
Minimum Operating Temperature	-40 °C	Maximum Operating Temperature	302 °F
Shape	Straight	Valve Included	Yes
Coupling Half	Coupler	For Fluid Type	Water
Technology	Fluid & Gas Handling	Body Material	Stainless Steel 316L
Seal Material	EPDM	Region of Origin	Germany
Connection Type	Male	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Brand	Rectus	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	G 3/8
Interchange Type	European Profile	Function	Double Shut-Off
Length	33 to 76 mm	Application	Industrial Equipment
Diameter	10 mm (nominal)	Industry	Electronics
Compatible Fitting	Series 27 Plug	Plating Type	Without Surface Treatment
Valve Type	High Flow Valve	Weight	0.1436 kg
Hex Size	17 to 32 mm	Product Series	Series 27
Flow Rate	14 L/min (water)
Version	Double Shut-Off	Coupling Half	Coupler
Connection Size	3/8"	Connection Type	Male, BSPP
Materials of Construction	Stainless Steel AISI 316L
