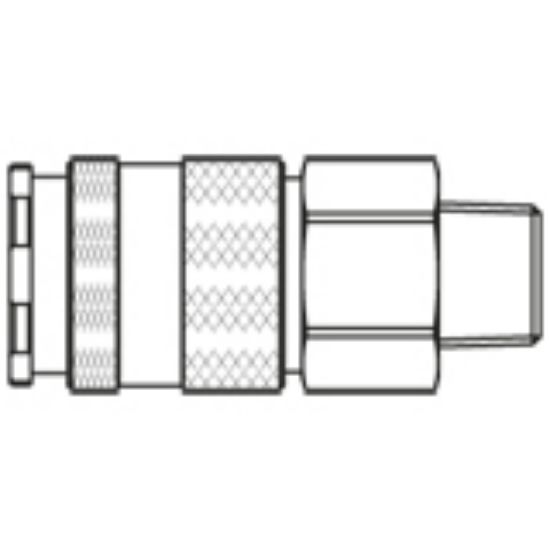

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KBAK26BVN

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KBAK26BVN
SKU: 27KBAK26BVN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 27KBAK26BVN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Sleeve Material	BRASS	Minimum Operating Temperature	-15 °C
Specifications Met	RoHS	Brand	Parker
Shape	Straight	Valve Included	Yes
Coupling Half	Coupler	Technology	Fluid & Gas Handling
Seal Material	FKM	Length	n/a
Industry	General Industrial	Hex Size	27 mm
Region of Origin	Germany	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Function	Double Shut-Off
Application	Industrial Equipment	Diameter	10 mm (nominal)
Connection Size	R 3/4	Maximum Operating Temperature	392 °F
For Fluid Type	Chemical Fluids	Valve Type	High Flow Valve
Product Series	Series 27	Weight	0.1797 kg
Flow Rate	14 L/min (water)	Connection Type	Male DIN 2999 Tapered
Materials of Construction	Brass, Nickel-plated	Version	Double Shut-Off
Coupling Half	Coupler	Connection Type	Male, BSPT
Connection Size	3/4"
