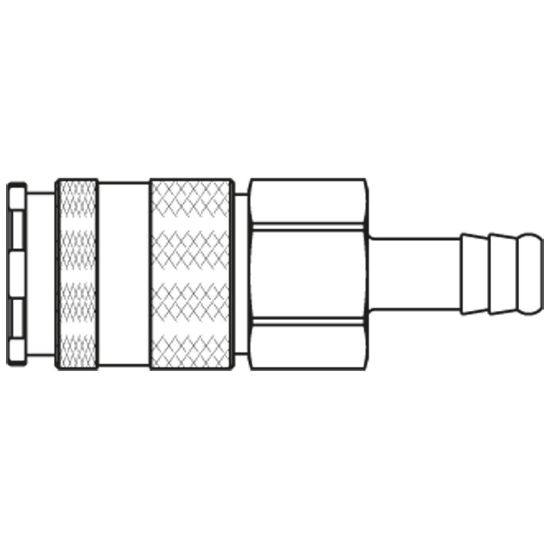

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KATF13MVN

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KATF13MVN
SKU: 27KATF13MVN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 27KATF13MVN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Sleeve Material	BRASS	Minimum Operating Temperature	-15 °C
For Fluid Type	Compressed Air	Brand	Parker
Shape	Straight	Valve Included	Yes
Coupling Half	Coupler	Technology	Pneumatics
Seal Material	FKM	Maximum Operating Temperature	200 °C
Length	76 mm	Industry	General Industrial
Outside Diameter	27 mm	Hex Size	24 mm
Region of Origin	Germany	Connection Type	Hose Barb
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Function	Single Shut-Off
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	13 mm
Interchange Type	European Profile	Diameter	10 mm (nominal)
Compatible Fitting	Series 27 Plug	Application	Textile Machinery
Valve Type	High Flow Valve	Flow Rate	2400 L/min (air)
Product Series	Series 27	Weight	0.1555 kg
Connection Type	Hose Barb	Materials of Construction	Brass, Nickel-plated
Version	Single Shut-Off	Coupling Half	Coupler
Connection Size	13 mm
