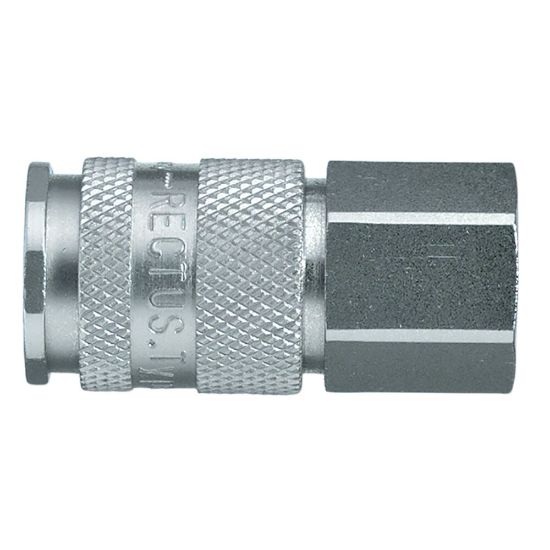

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KAIW26MPN

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KAIW26MPN
SKU: 27KAIW26MPN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 27KAIW26MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Sleeve Material	BRASS	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	NBR
Specifications Met	RoHS	For Fluid Type	Compressed Air
Brand	Parker	Shape	Straight
Connection Size	G 1/4	Valve Included	Yes
Coupling Half	Coupler	Technology	Pneumatics
Length	60 mm	Industry	General Industrial
Outside Diameter	27 mm	Hex Size	27 mm
Region of Origin	Germany	Connection Type	Female
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Function	Single Shut-Off	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Interchange Type	European Profile	Diameter	10 mm (nominal)
Compatible Fitting	Series 27 Plug	Application	Textile Machinery
Valve Type	High Flow Valve	Weight	0.2005 kg
Flow Rate	2400 L/min (air)	Product Series	Series 27
Maximum Flow Rate	2400 L/min (air)
Materials of Construction	Brass, Nickel-plated	Version	Single Shut-Off
Coupling Half	Coupler	Connection Type	Female, BSPP
Connection Size	3/4"
