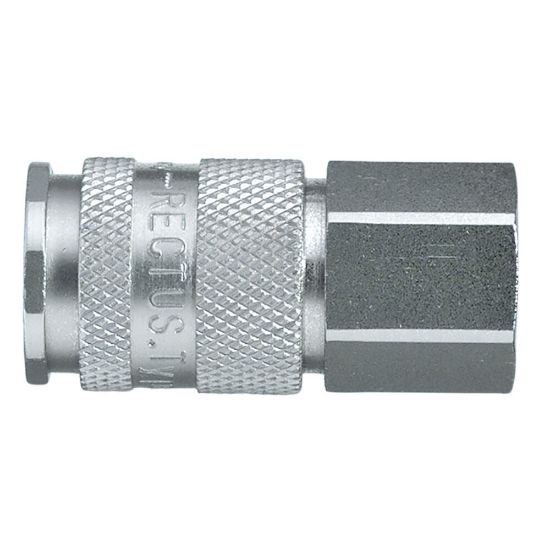

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KAIW21EVX

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KAIW21EVX
SKU: 27KAIW21EVX
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 27KAIW21EVX

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	1
Division	Low Pressure Connectors Europe Division	Sleeve Material	BRASS
Minimum Operating Temperature	-15 °C	Specifications Met	RoHS
Shape	Straight	Valve Included	Yes
Coupling Half	Coupler	Technology	Pneumatics
Body Material	Stainless Steel 316L	Seal Material	FKM
Industry	General Industrial	Outside Diameter	27 mm
Hex Size	24 mm	Region of Origin	Germany
Connection Type	Female	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Brand	Rectus
Function	Single Shut-Off	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	G 1/2
Interchange Type	European Profile	Diameter	10 mm (nominal)
Compatible Fitting	Series 27 Plug	Application	Food & Beverages
Plating Type	Without Surface Treatment	Maximum Operating Temperature	392 °F
For Fluid Type	Breathing Air	Weight	0.13 kg
Valve Type	High Flow Valve	Length	56.5 mm
Flow Rate	2400 L/min (air)	Product Series	Series 27
Maximum Flow Rate	2400 L/min (air)
Version	Single Shut-Off	Coupling Half	Coupler
Connection Size	1/2"	Connection Type	Female, BSPP
Materials of Construction	Stainless Steel AISI 316L
