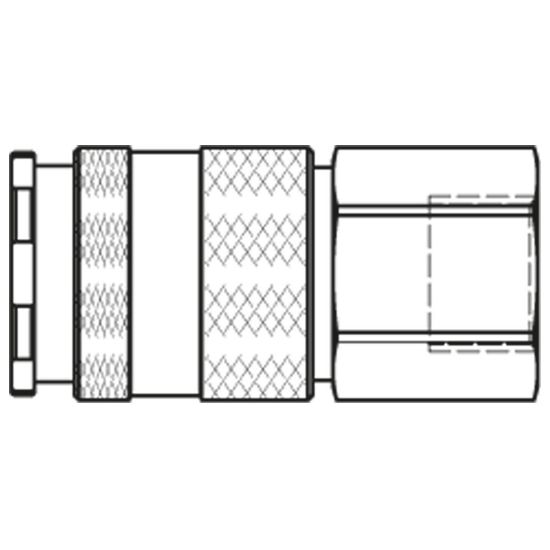

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KAIW17MED

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KAIW17MED
SKU: 27KAIW17MED
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 27KAIW17MED

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	10
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Sleeve Material	BRASS	Maximum Operating Temperature	150 °C
Minimum Operating Temperature	-40 °F	Specifications Met	RoHS
Brand	Parker	Shape	Straight
Valve Included	Yes	Coupling Half	Coupler
Technology	Pneumatics	Seal Material	EPDM
Industry	General Industrial	Region of Origin	Germany
Connection Type	Female	Application	Air & Gas Compressor
Product Style	Quick-Connect	Maximum Operating Pressure	up to 507 psi
Function	Single Shut-Off	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	G 3/8
Interchange Type	European Profile	Length	33 to 76 mm
Diameter	10 mm (nominal)	Compatible Fitting	Series 27 Plug
For Fluid Type	Breathing Air	Valve Type	High Flow Valve
Plating Type	Durnicoated (chemic. zinc plated)	Weight	0.1464 kg
Hex Size	17 to 32 mm	Flow Rate	2400 L/min (air)
Product Series	Series 27
Materials of Construction	Brass	Version	Single Shut-Off
Coupling Half	Coupler	Connection Size	3/8"
Connection Type	Female, BSPP
