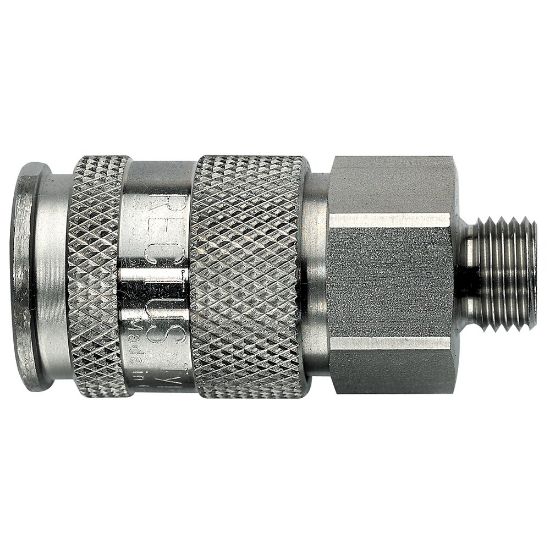

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KAAW17MEN

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KAAW17MEN
SKU: 27KAAW17MEN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 27KAAW17MEN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Sleeve Material	BRASS	Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	302 °F	For Fluid Type	Compressed Air
Shape	Straight	Valve Included	Yes
Coupling Half	Coupler	Technology	Pneumatics
Seal Material	EPDM	Industry	General Industrial
Outside Diameter	27 mm	Hex Size	24 mm
Region of Origin	Germany	Specifications Met	ATEX
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Brand	Rectus	Function	Single Shut-Off
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Connection Size	G 3/8
Interchange Type	European Profile	Diameter	10 mm (nominal)
Application	Textile Machinery	Connection Type	Male ISO 228 Parallel
Valve Type	High Flow Valve	Length	57.5 mm
Weight	0.1393 kg	Flow Rate	2400 L/min (air)
Product Series	Series 27
Materials of Construction	Brass, Nickel-plated	Version	Single Shut-Off
Coupling Half	Coupler	Connection Size	3/8"
Connection Type	Male, BSPP
