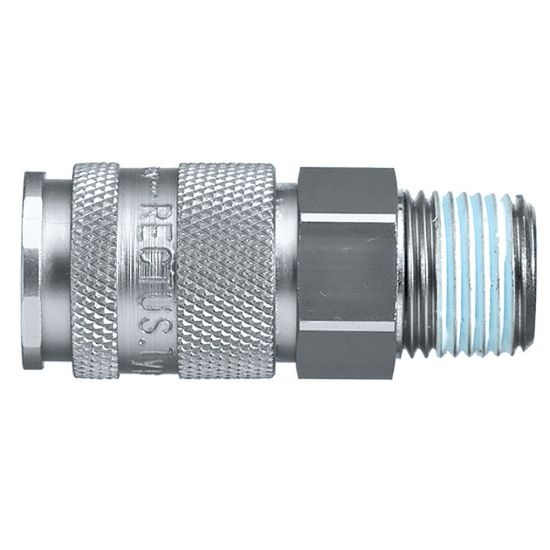

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KAAK26MPN

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 27KAAK26MPN
SKU: 27KAAK26MPN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 27KAAK26MPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Body Material	BRASS
Sleeve Material	BRASS	Seal Material	NBR
Brand	Parker	Shape	Straight
Minimum Operating Temperature	-4 °F	Valve Included	Yes
Coupling Half	Coupler	Maximum Operating Temperature	212 °F
Technology	Pneumatics	Industry	General Industrial
Outside Diameter	27 mm	Hex Size	27 mm
Length	65 mm	Region of Origin	Germany
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Function	Single Shut-Off
Plating Type	Nickel-plated	Product Type	Pneumatic Quick Couplings
Operation Type	Sleeve	Interchange Type	European Profile
Connection Type	BSPT DIN 2999 Tapered	Application	Industrial Equipment
Diameter	10 mm (nominal)	Connection Size	R 3/4
Compatible Fitting	Series 27 Plug	For Fluid Type	Breathing Air
Valve Type	High Flow Valve	Weight	0.1759 kg
Flow Rate	2400 L/min (air)	Product Series	Series 27
Maximum Flow Rate	2400 L/min (air)
Materials of Construction	Brass, Nickel-plated	Version	Single Shut-Off
Coupling Half	Coupler	Connection Type	Male, BSPT
Connection Size	3/4"
