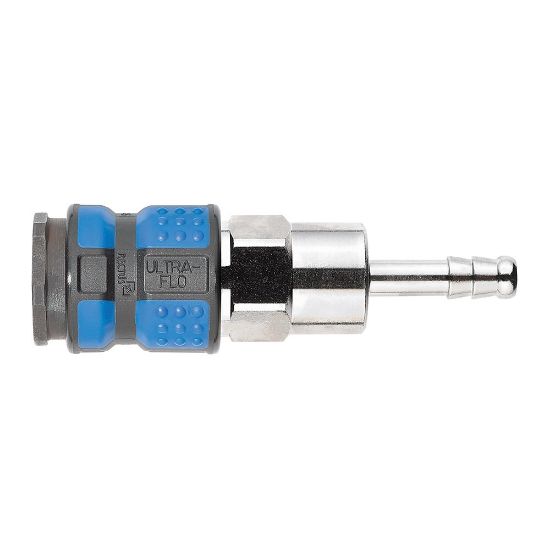

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1727KATF10SPN

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1727KATF10SPN
SKU: 1727KATF10SPN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 1727KATF10SPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Application	Industrial Machinery
Minimum Operating Temperature	-20 °C	Body Material	Steel
Seal Material	NBR	Specifications Met	RoHS
For Fluid Type	Compressed Air	Shape	Straight
Coupling Half	Coupler	Technology	Pneumatics
Outside Diameter	30 mm	Hex Size	24 mm
Region of Origin	Germany	Connection Type	Hose Barb
Product Style	Quick-Connect	Maximum Operating Pressure	up to 35 bar
Brand	Rectus	Function	Single Shut-Off
Valve Type	Ultra High Flow Valve	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Connection Size	10 mm	Sleeve Material	Technical polymer
Interchange Type	European Profile	Flow Rate	3500 L/min
Length	33 to 76 mm	Diameter	10 mm (nominal)
Industry	Electronics	Compatible Fitting	Series 27 Plug
Maximum Operating Temperature	40 °C	Weight	0.143 kg
Product Series	Series 1727
Materials of Construction	Steel	Connection Type	Hose Barb
Version	Single Shut-Off	Coupling Half	Coupler
Connection Size	10 mm
