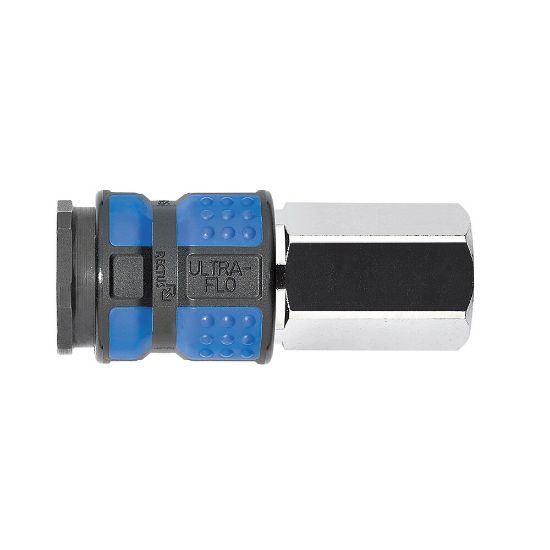

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1727KAIW26SPN

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1727KAIW26SPN
SKU: 1727KAIW26SPN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 1727KAIW26SPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Weight	0.222 kg
Body Material	Steel	Seal Material	NBR
For Fluid Type	Compressed Air	Brand	Parker
Shape	Straight	Minimum Operating Temperature	-4 °F
Industry	Transportation	Coupling Half	Coupler
Technology	Pneumatics	Outside Diameter	30 mm
Hex Size	32 mm	Region of Origin	Germany
Specifications Met	ATEX	Product Style	Quick-Connect
Maximum Operating Pressure	up to 507 psi	Function	Single Shut-Off
Valve Type	Ultra High Flow Valve	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Sleeve Material	Technical polymer	Interchange Type	European Profile
Flow Rate	3500 L/min	Connection Type	BSPP ISO 228 Parallel
Length	33 to 76 mm	Application	Energy Management
Diameter	10 mm (nominal)	Connection Size	G 3/4
Compatible Fitting	Series 27 Plug	Maximum Operating Temperature	40 °C
Product Series	Series 1727
Materials of Construction	Steel	Version	Single Shut-Off
Coupling Half	Coupler	Connection Type	Female, BSPP
Connection Size	3/4"
