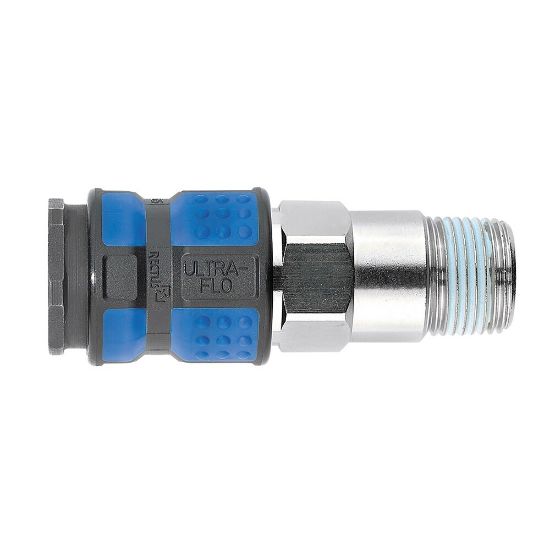

Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1727KAAK21SPN

Name: Quick coupling, European Profile ND 10 (Series 27, Series 1700, Series 1727) - 1727KAAK21SPN
SKU: 1727KAAK21SPN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 10 for pneumatic and fluid handling applications up to 35 bar. Coupling system with the largest standard European profile. Available made of brass/steel or stainless steel.

Availability:

Backordered

SKU: 1727KAAK21SPN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	5
Division	Low Pressure Connectors Europe Division	Minimum Operating Temperature	-20 °C
Body Material	Steel	Seal Material	NBR
Brand	Parker	Shape	Straight
Coupling Half	Coupler	For Fluid Type	Air
Technology	Pneumatics	Outside Diameter	30 mm
Hex Size	24 mm	Region of Origin	Germany
Connection Type	Male	Specifications Met	ATEX
Application	Trucks & Trailers	Product Style	Quick-Connect
Maximum Operating Pressure	up to 35 bar	Function	Single Shut-Off
Valve Type	Ultra High Flow Valve	Plating Type	Nickel-plated
Product Type	Pneumatic Quick Couplings	Operation Type	Sleeve
Connection Size	R 1/2	Sleeve Material	Technical polymer
Interchange Type	European Profile	Flow Rate	3500 L/min
Length	33 to 76 mm	Diameter	10 mm (nominal)
Industry	Electronics	Compatible Fitting	Series 27 Plug
Maximum Operating Temperature	104 °F	Weight	0.1482 kg
Product Series	Series 1727
Materials of Construction	Steel	Version	Single Shut-Off
Coupling Half	Coupler	Connection Size	1/2"
Connection Type	Male, BSPT
